Fumei C20 External Opening System Window

Fumei C20 External Opening System Window

Outward-opening window with integrated screen" is a door and window system design that integrates outward-opening windows (window sashes that open outwards) with protective screens.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Advantage

Product Details

Product Configuration

FAQ

Product Description

Fumei C20 External Opening System Window

Water Tightness Performance

Air Tightness Performance

Wind Pressure Resistance Performance

Soundproofing Performance

Thermal Insulation
Performance

Level 6

Level 8

Level 9

≥35dB

K≤2.4

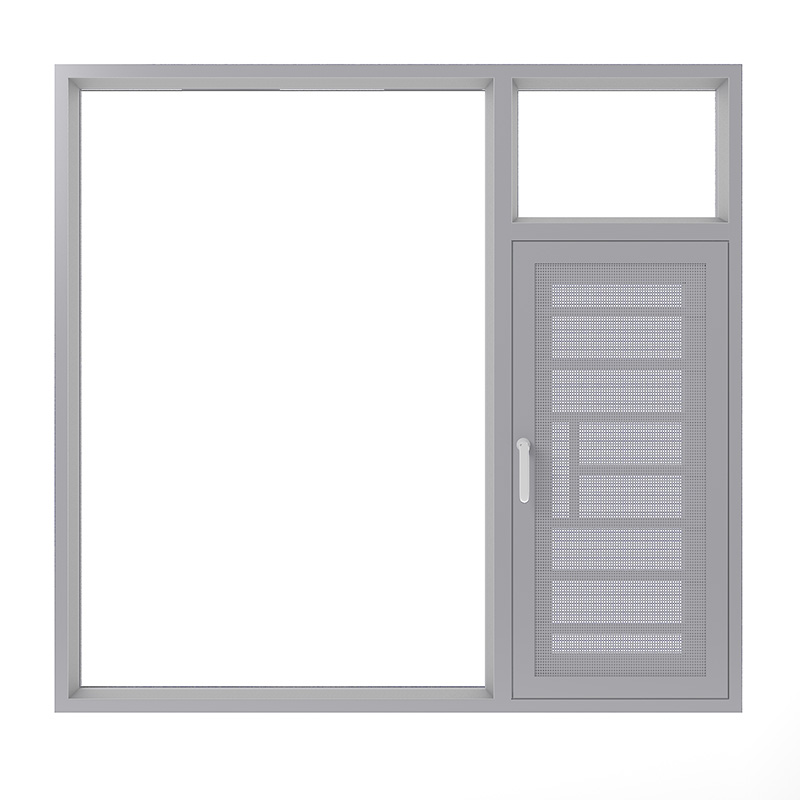

An outward-opening window with integrated screen design is a door and window system desian that
integrates an outward-opening window (a sash that opens outward) with a protective screen.
The core of this desian is that the window frame and screen frame are a sincle, intearal component, or the
screen frame is a tightly intearated component fixed to the outside of the door and window structure (closely attached to the main frame ).

Product Advantage

	The fourth-generation hidden drainage system,worry-free in wind and rain

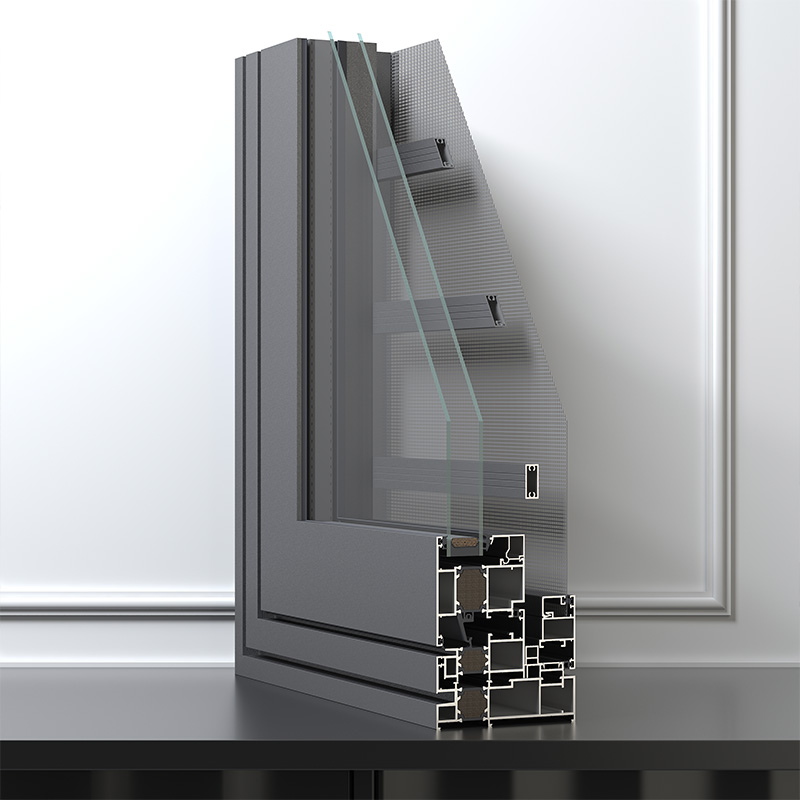

	Multi-chamber insulation + fully enclosed thermal insulation cotton for constant temperature and comfort
	New national standard wall thickness, as stable as Mount Tai
	Frame and sash are designed to be flushof the interior and exterior + smooth curved lines, the beauty of the design

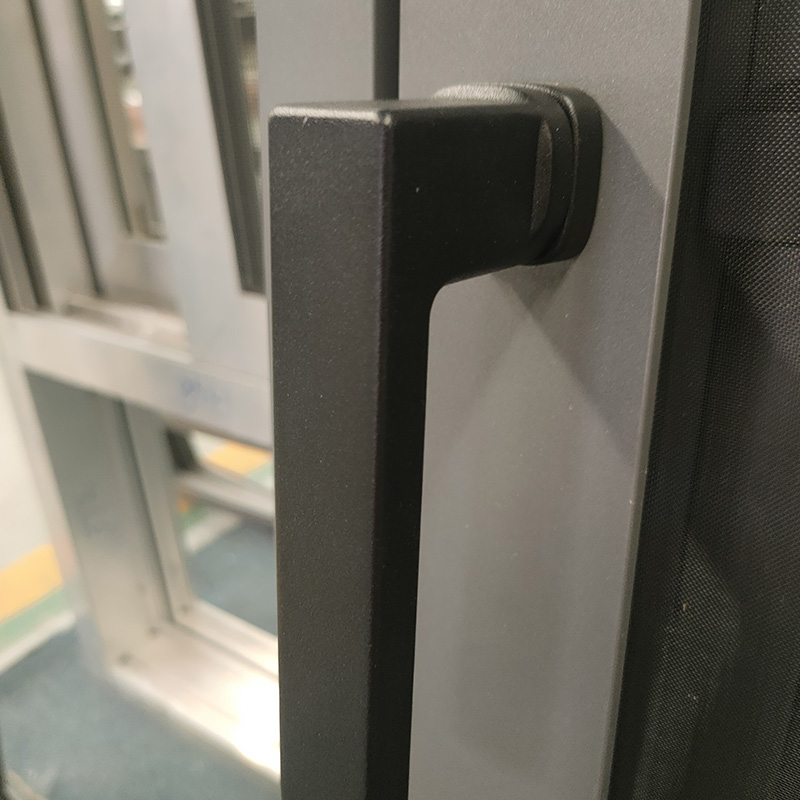

	Concealed hardware design, hiding the sharpness within

Product Details

Product Configuration

Product Configuration	Specifics
Frame Construction	Full-flush Frame-Sash Alignment；Vertical multi-port concealed drainage system
Opening Options	Option 1:Glazing Sash - Outswing Casement, Screen Sash - lnswing Casement Option 2: Glazing Sash - Outswing Tilt & Turn, Screen Sash - Inswing Casement Simulated Mullion Design(for Double Sash Opening)
Material Thickness	Profile wall thickness 1.8mm, outer frame width 119mm
Viewable Width	Frame, center mullion 35mm, sash view 34mm
Standard Glazing	5+20A+5
Insulation	25.3mm thermal barrier strip, optional cavity thermal barrier foam
Glazing Bead	Standard Glazing Bead: Radius/Curved Design, Optional Glazing Bead: Angled Design
Hardware	Standard: Premium Wehag ( Made in Germany ), Base-free High-Rise Handle, Integrated Friction Hinges Screen Sash Hardware: High-Rise Handle without Base Plate, 180° Opening Angle

FAQ

Q1: Are you a factory ?

A:Yes, our production base covers an area of 560,000 square meters, nearly 20 years of industry experience, and the top five well-known brands in China.

Q2: Are your products certified ?

A:Yes, it has complete international certification and test report, including Australian standard, European standard, American standard and so on.

Q3:Can doors and windows be customized ?

A:Yes, to meet the specific use of the environment of high custom and provide aluminum doors and windows matching the style of the building.

Q4: What's your MOQ?

A:We don't enforce strict MOQ requirements, allowing flexible order quantities. However, please note that smaller orders may incur proportionally higher shipping costs. For your reference, we always provide transparent cost breakdowns separating product value and shipping expenses.

Q5: Do you provide after-sales service ?

A:Quality and after-sales are guaranteed, any problem contact us.
