Starry Sky SeriesUpper Suspended Skylight

A top-hung skylight is a window with a top-hung sash (i.e., the top of the sash is fixed and the bottom is pushed outward).
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Product Description
Product Advantage
Product Details
Product Configuration
FAQ

Product Description


微信图片_20240329105840

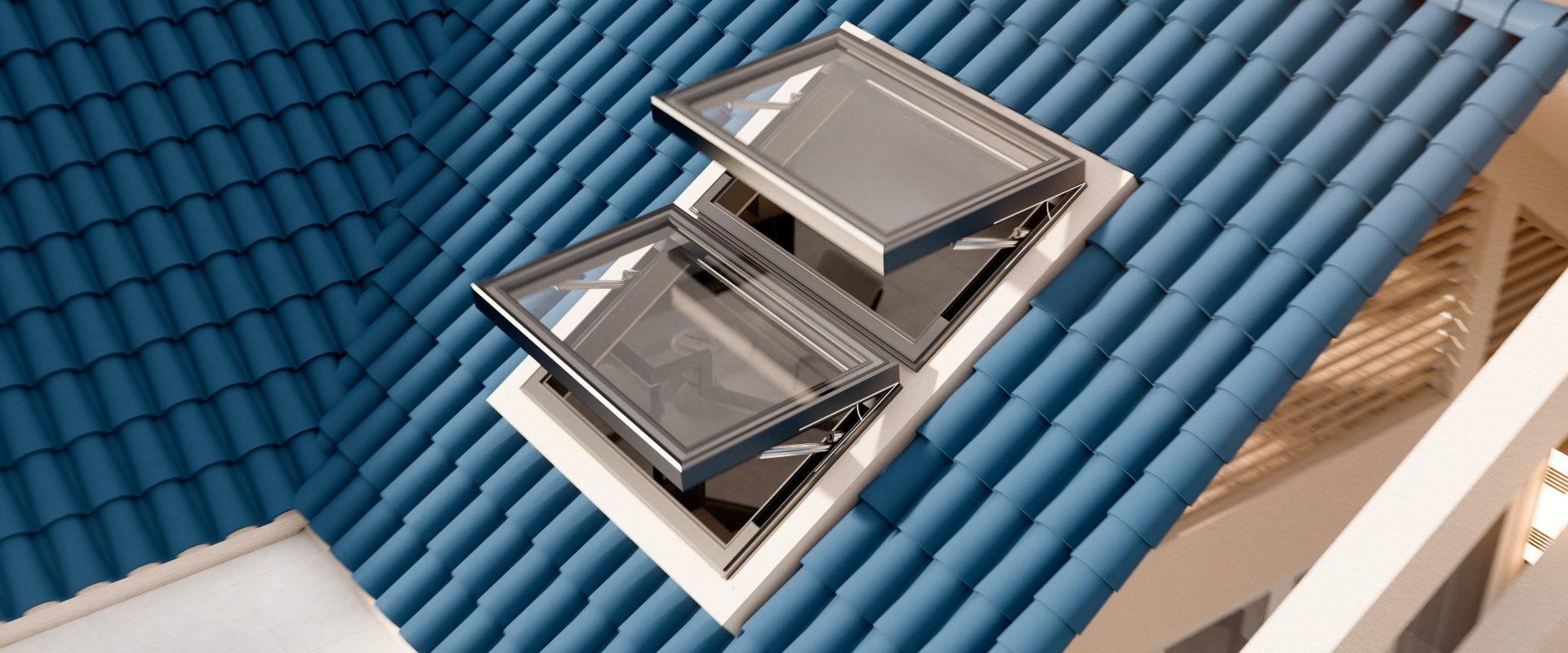

  • A top-hung skylight is a window with a top-hung sash (i.e., the top of the sash is fixed and the bottom is pushed outward).A side-pressure window is a window system that opens and closes by pressing the sash sideways.


Product Advantage

20

5m2 large area, wide field of view without feeling cramped

2

Good lighting and ventilation,anti-theft and anti-falling

3

Aerospace-grade seamless welding technology

4

Dual screw motor synchronouscontrol
5

Luxury car-grade EPDM full-circle sealing rubber strip


Product Details

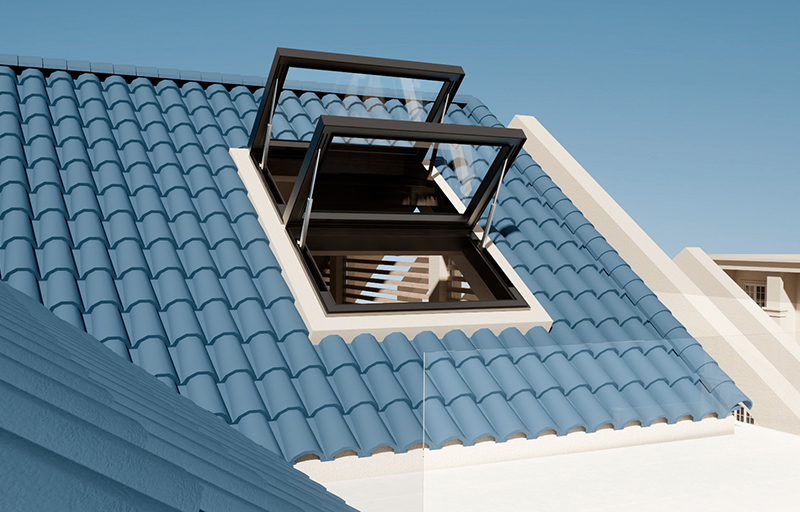

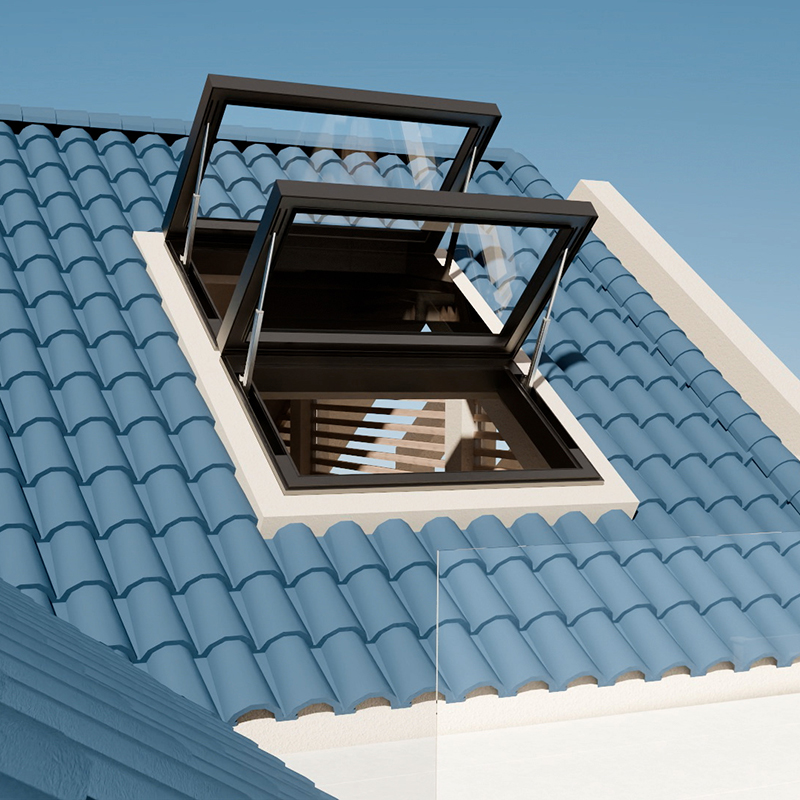

  • <span style="font-size:18px;"><strong>Front skylight</strong></span>
    <span style="font-size:18px;"><strong>Front skylight</strong></span>

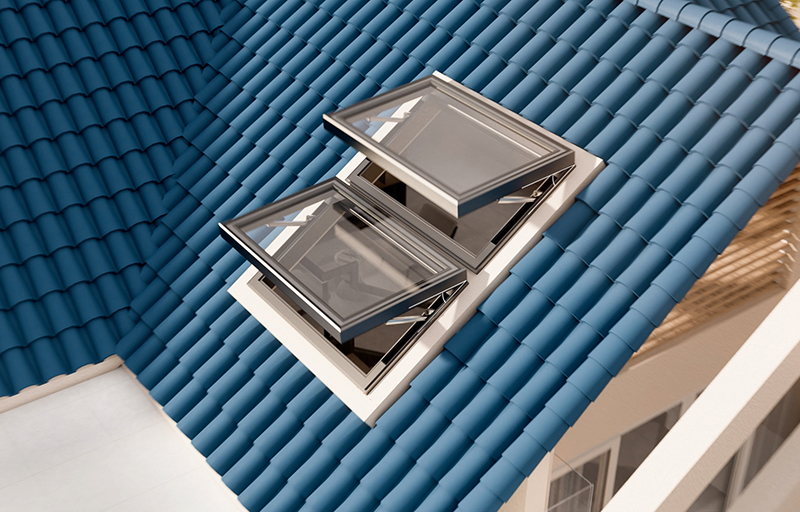

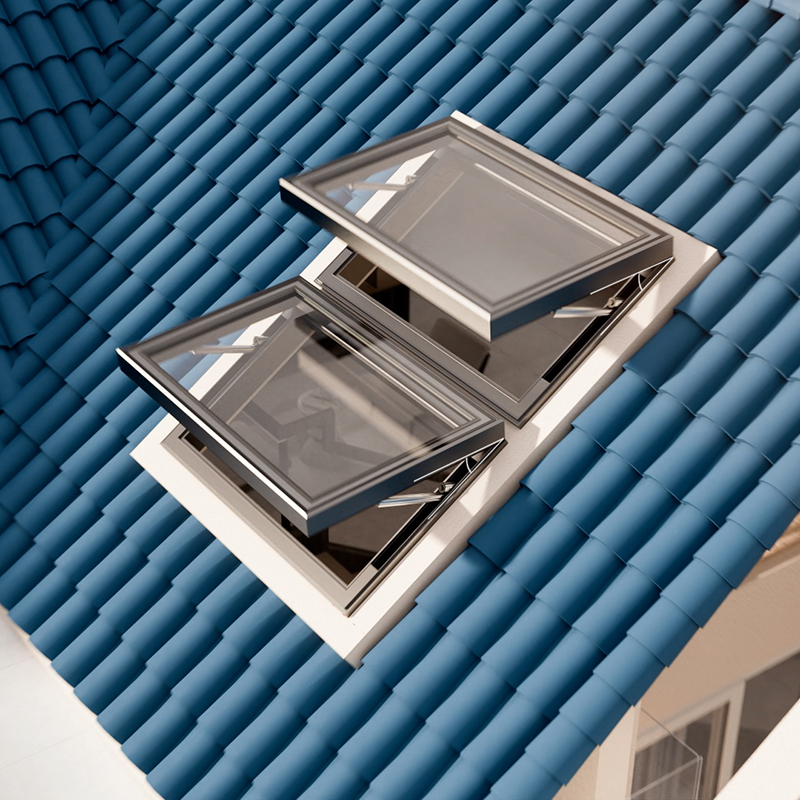

  • <span style="font-size:18px;"><strong>Top skylight</strong></span>
    <span style="font-size:18px;"><strong>Top skylight</strong></span>


Product Configuration


Product Configuration

Specifics

Material

Aluminum Alloy 6063-T5

Specifications

Length (L): 900mm ≤ L < 3500mm
Width (W): 900mm ≤ W ≤ 1300mm

Installation Pitch

0° - 10° (For light wells/piers or concrete sills/upstands)

Surface Treatment

Powder coating

Operation Method

Motorized / Electric, Remote control

Glazing Configuration (Optional)

Option 1: 5mm + 1.14mm PVB + 5mm Laminated Glass
Option 2: 6mm + 1.52mm PVB + 6mm Laminated + 27mm Air Gap + 6mm Insulated Laminated Glass

Profile Wall Thickness

Main Profiles: 2.0 mm
Load-bearing Profiles: 3.0 mm

Standard Inclusion

Built-in motor
Remote controller (Remote control handset)

Fabrication Process

Seamless welding


FAQ


Q1: Are you a factory ?

A:Yes, our production base covers an area of 560,000 square meters, nearly 20 years of industry experience, and the top five well-known brands in China.


Q2: Are your products certified ?

A:Yes, it has complete international certification and test report, including Australian standard, European standard, American standard and so on.


Q3:Can doors and windows be customized ?

A:Yes, to meet the specific use of the environment of high custom and provide aluminum doors and windows matching the style of the building.


Q4: What's your MOQ?

A:We don't enforce strict MOQ requirements, allowing flexible order quantities. However, please note that smaller orders may incur proportionally higher shipping costs. For your reference, we always provide transparent cost breakdowns separating product value and shipping expenses.


Q5: Do you provide after-sales service ?

A:Quality and after-sales are guaranteed, any problem contact us.


Contact Us

Related Products

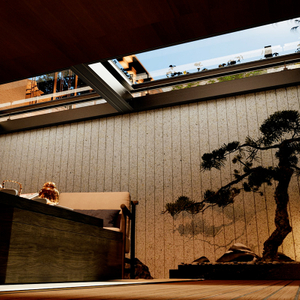

Starry Sky Series 95 Sunshine Room
