Fumei MTS26 side pressure sealing window

Fumei MTS26 side pressure sealing window

A side-pressure window is a window system that opens and closes by pressing the sash sideways.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Advantage

Product Details

Product Configuration

FAQ

Product Description

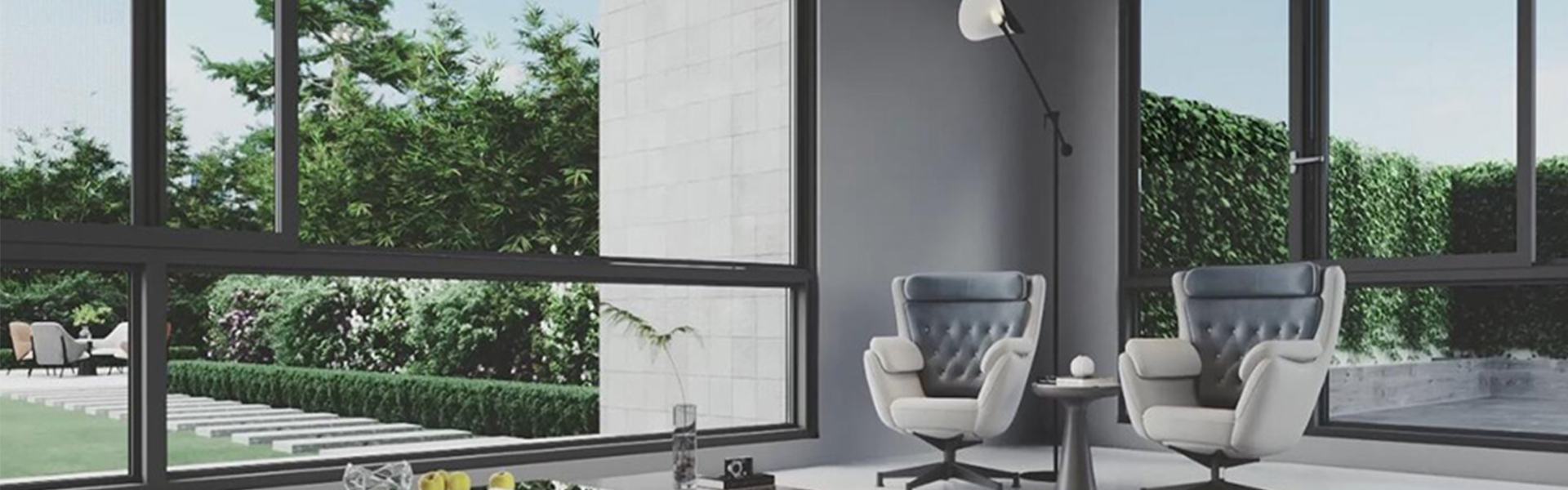

Fumei MTS26 Side Pressure Sealing Window

Water Tightness Performance

Air Tightness Performance

Wind Pressure Resistance Performance

Soundproofing Performance

Thermal Insulation
Performance

Level 5

Level 7

Level 9

≥32dB

K≤2.0

A side-pressure window is a window system that opens and closes by pressing the sash sideways.

Product Advantage

	6mm Lateral Compression Technology + High-elasticity sealant strip
	300KG Dual-wheel Load-bearing Structure + Recessed Bottom Wheel Design

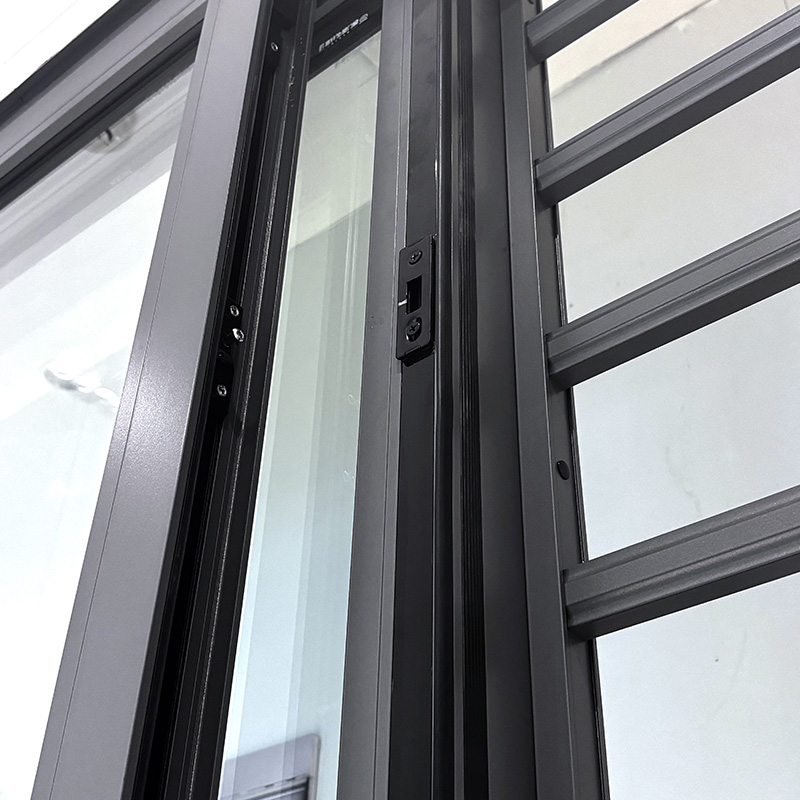

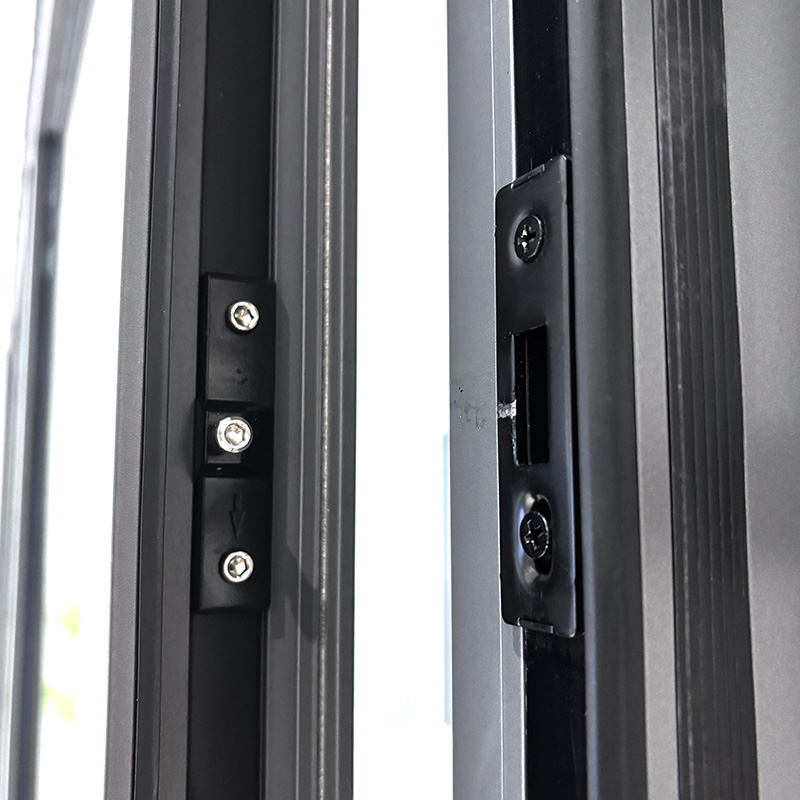

	Stainless Steel Precision-cast Lock Hooks + Multi-point Locking System
	Bidirectional 8-needle Bearings，Low-friction operation for effortless opening/closing
	Integrated Hidden Child Lock，concealed safety mechanism preventing accidental opening

Product Details

Product Configuration

Product Configuration	Specifics
Frame Structure	Thermal Break Aluminum Profile
Material Thickness	Frame: 1.0-1.8mm Glass Sash: 1.4-1.8mm
Opening Methods	Sliding (Horizontal Sliding System)
Standard Glazing	5+20A+5
Thermal Barriers	Sash: C-shaped 14.8mm Thermal Break Frame: C-shaped 18mm Thermal Break
Hardware	Glass Sash: HOPO Hardware (Standard) Screen Sash: Fuxuan Custom Hardware
Wall Occupancy	126mm
Visible Width	Frame: 30.2mm Sash: 66.5mm

FAQ

Q1: Are you a factory ?

A:Yes, our production base covers an area of 560,000 square meters, nearly 20 years of industry experience, and the top five well-known brands in China.

Q2: Are your products certified ?

A:Yes, it has complete international certification and test report, including Australian standard, European standard, American standard and so on.

Q3:Can doors and windows be customized ?

A:Yes, to meet the specific use of the environment of high custom and provide aluminum doors and windows matching the style of the building.

Q4: What's your MOQ?

A:We don't enforce strict MOQ requirements, allowing flexible order quantities. However, please note that smaller orders may incur proportionally higher shipping costs. For your reference, we always provide transparent cost breakdowns separating product value and shipping expenses.

Q5: Do you provide after-sales service ?

A:Quality and after-sales are guaranteed, any problem contact us.
