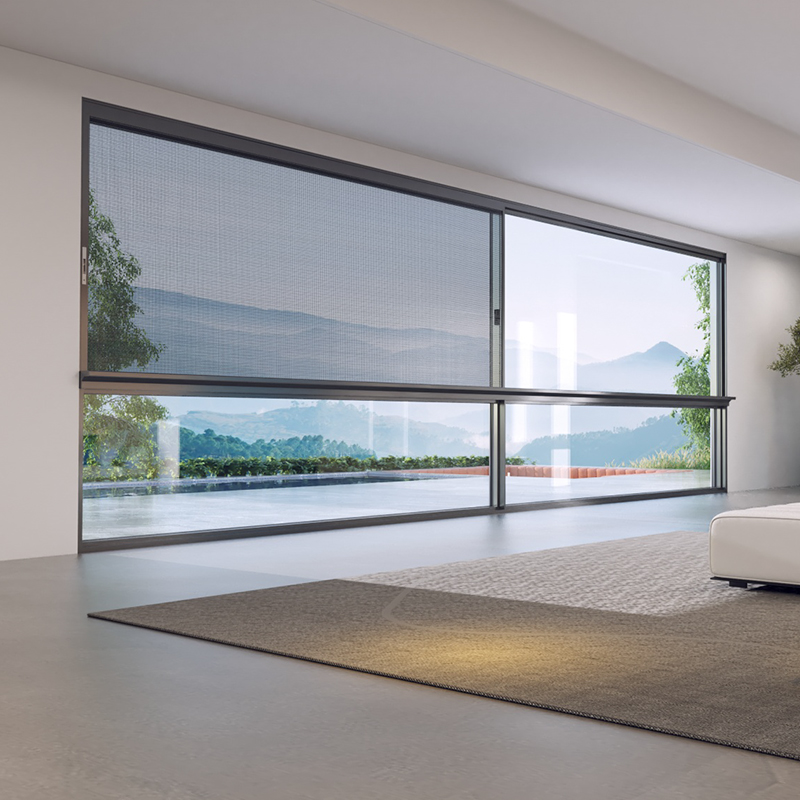

Fuyin MTS15 Panoramic Thermal Break Sliding Window

Fuyin MTS15 Panoramic Thermal Break Sliding Window

Sliding windows are a type of window that opens and closes by sliding the sash horizontally from side to side. Its core feature is track-guided opening and closing, unlike the hinged rotation structure of casement windows.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Advantage

Product Details

Product Configuration

FAQ

Product Description

Fuyin MTS15 Panoramic Thermal Break Sliding Window

Water Tightness Performance

Air Tightness Performance

Wind Pressure Resistance Performance

Soundproofing Performance

Thermal Insulation
Performance

Level 6

Level 8

≥35dB

K≤2.6

Sliding windows are a type of window that opens and closes by sliding the sash horizontally from side to side. Its core feature is track-guided opening and closing, unlike the hinged rotation structure of casement windows.

Product Advantage

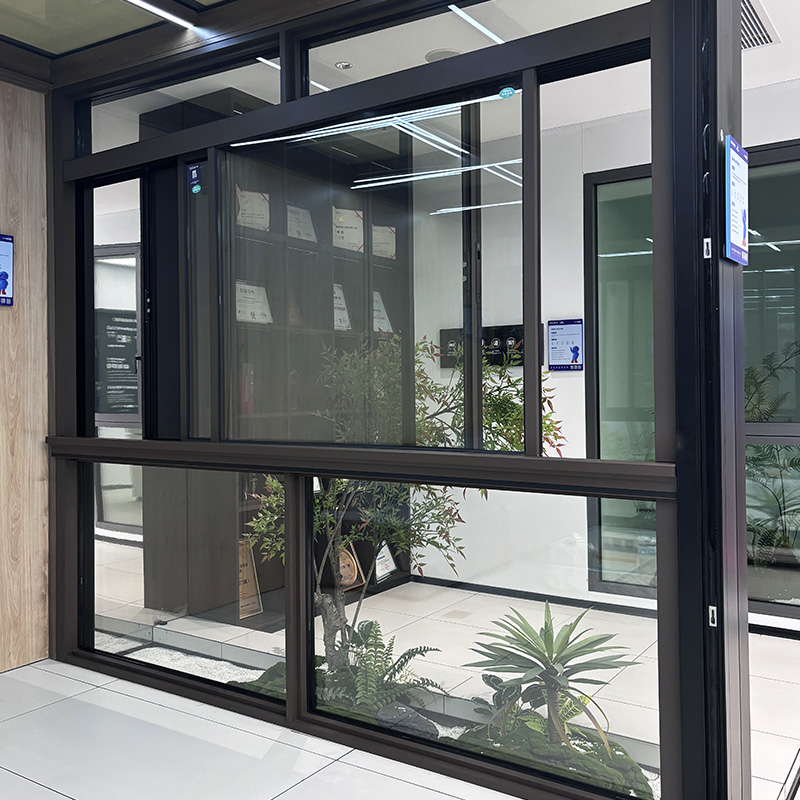

	The new embedded hidden sash design provides a broader view of the home
	It adopts a multi-channel sinking hidden drainage design to prevent rainwater from backflowing

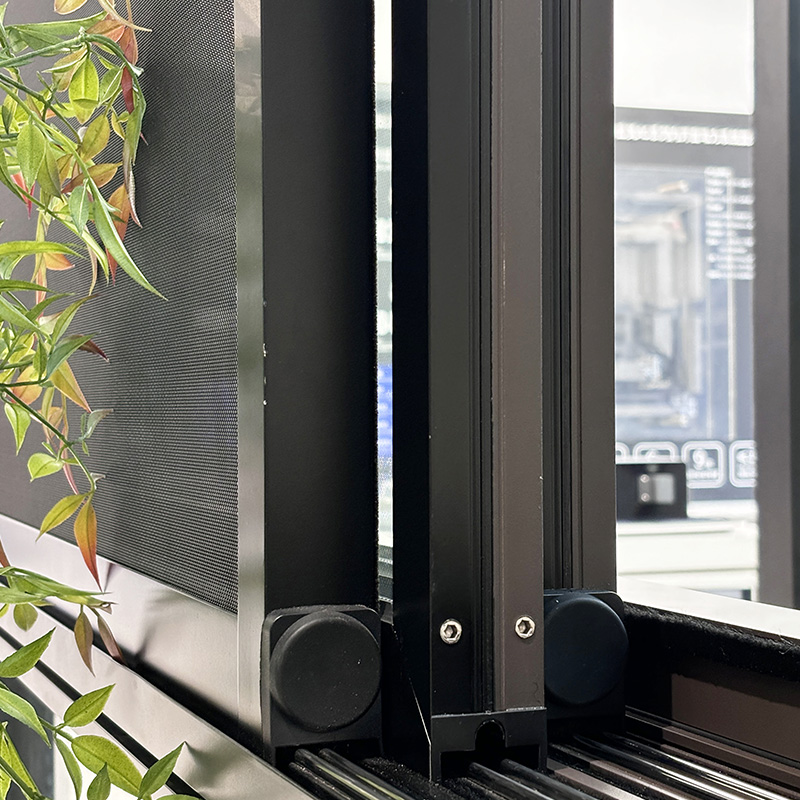

	The lower track comes with ten strips of brush seals to prevent dust from entering the room

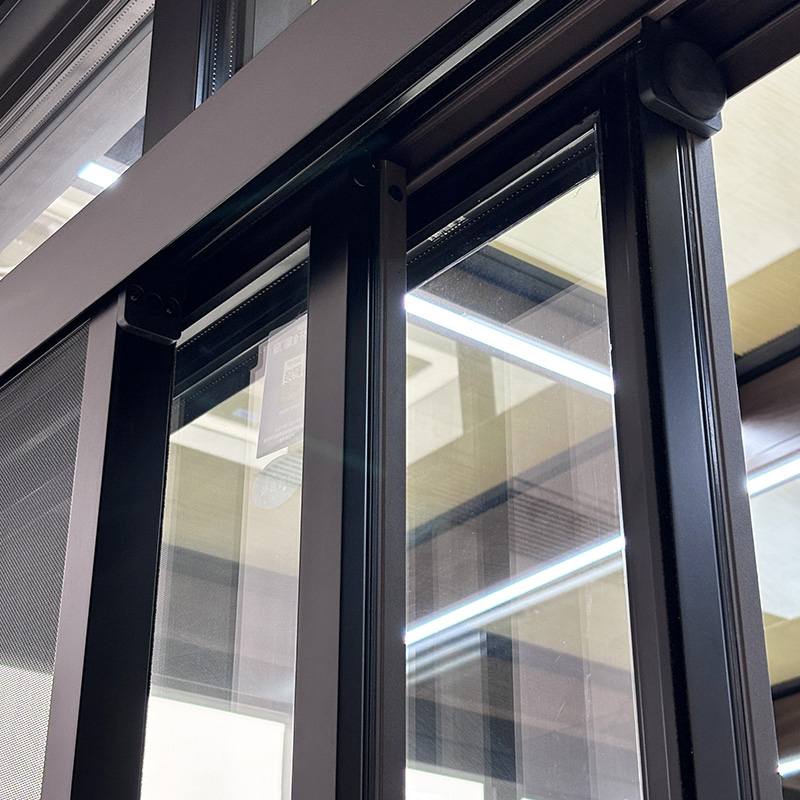

	Enhance the overall stability of the window sash by adding steel plates to the upper and lower rails
	The hidden frame features an automatic dual-hook touch lock, combining simplicity,aesthetics, and enhanced security

Product Details

Product Configuration

Specifics

Frame Construction

Fully Concealed Sliding Sash (flush-track design, no exposed rails when closed)

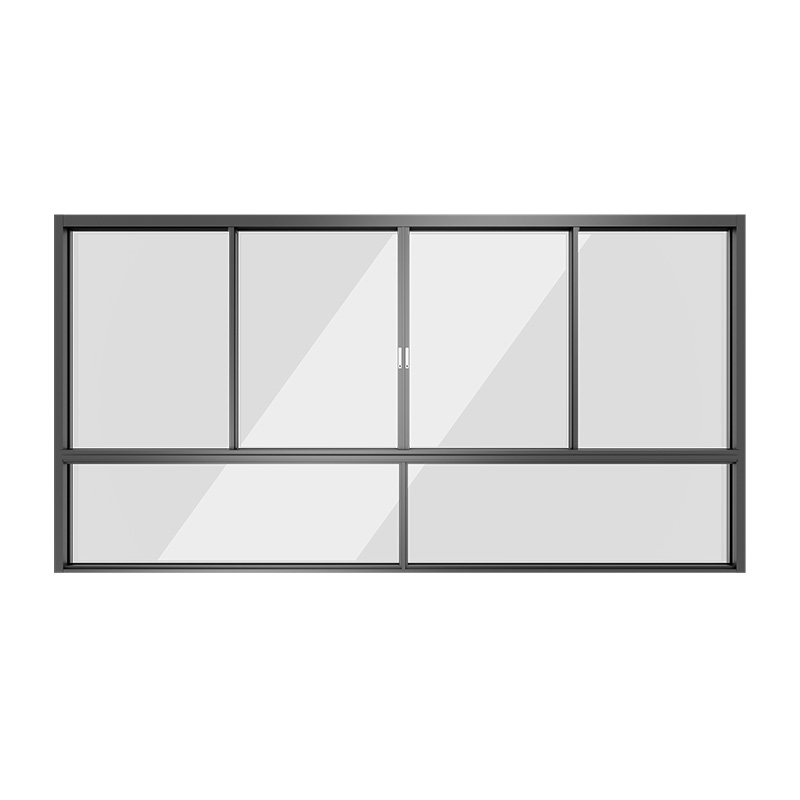

Opening Methods

4-track, 4-sash (quadruple sliding panels)
4-track, 2-sash (dual sliding panels)

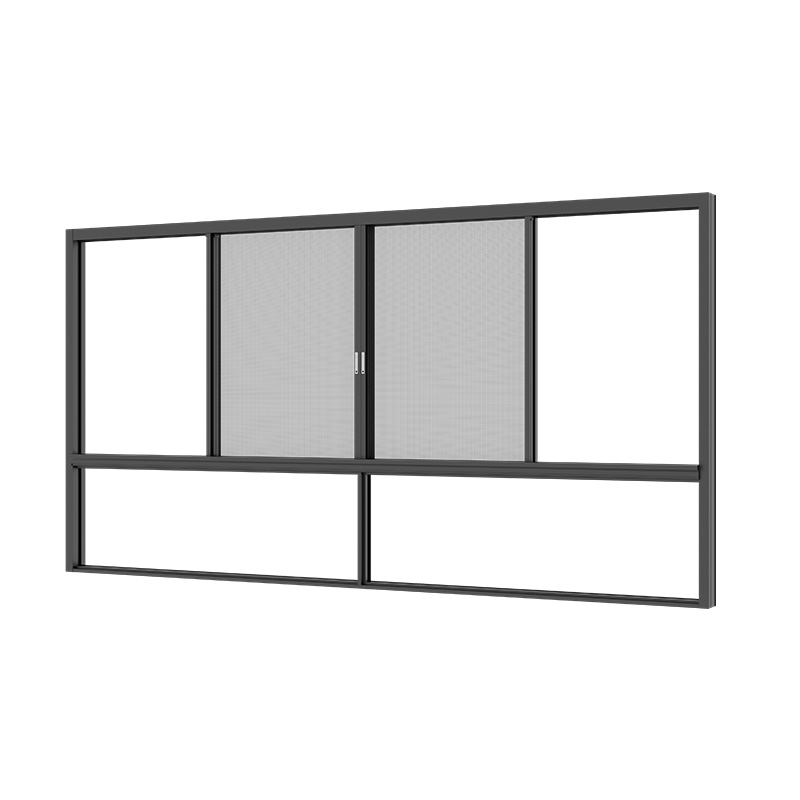

5-track, 2-sash with screen (dual sliding + integrated insect mesh)
5-track, 4-sash with screen (quadruple sliding + integrated insect mesh)

Visible Frame Width

Main frame: 64.3mm
Meeting rail (stile): 34.3mm

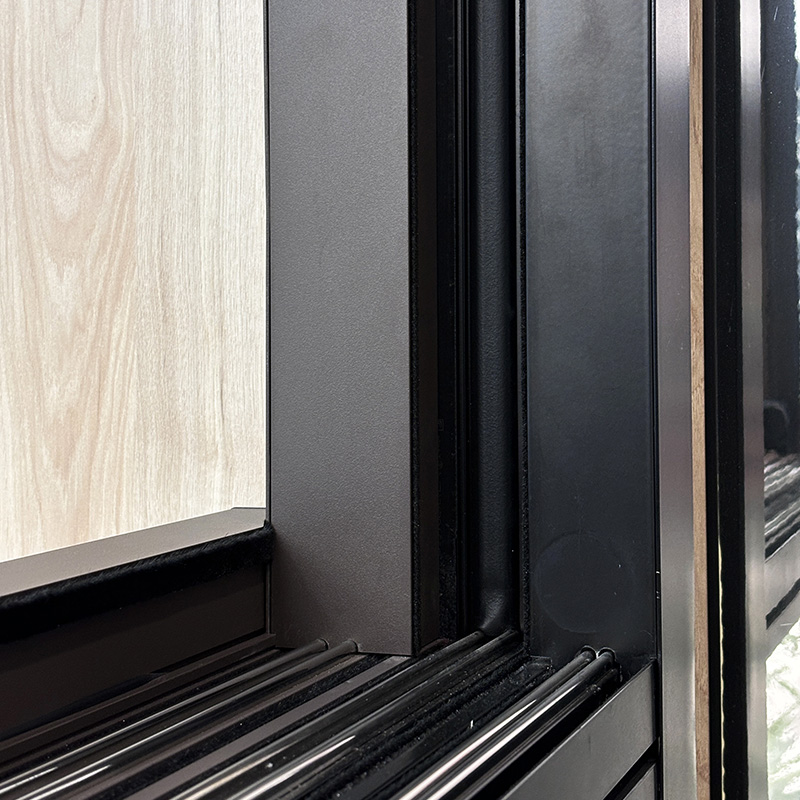

Insulation Strips

Frame:C-shaped 28mm thermal barrier
Sliding sash:12mm thermal barrier

Standard Glazing

5+20A+5

Screen Mesh

Standard:Ultra-clear fiberglass mesh

Hardware

BaoGao hardware (iron gray & sand-textured black) with Fuson logo

FAQ

Q1: Are you a factory ?

A:Yes, our production base covers an area of 560,000 square meters, nearly 20 years of industry experience, and the top five well-known brands in China.

Q2: Are your products certified ?

A:Yes, it has complete international certification and test report, including Australian standard, European standard, American standard and so on.

Q3:Can doors and windows be customized ?

A:Yes, to meet the specific use of the environment of high custom and provide aluminum doors and windows matching the style of the building.

Q4: What's your MOQ?

A:We don't enforce strict MOQ requirements, allowing flexible order quantities. However, please note that smaller orders may incur proportionally higher shipping costs. For your reference, we always provide transparent cost breakdowns separating product value and shipping expenses.

Q5: Do you provide after-sales service ?

A:Quality and after-sales are guaranteed, any problem contact us.
