Fuyin TS2 Drift Window

Drift windows combine the space-saving features of sliding windows with the airtightness of casement windows, opening and closing through the diagonal sliding movement of the sash. Their core features include multi-track linkage and tilting and sliding, addressing the issues of poor airtightness associated with traditional sliding windows and the space-consuming nature of casement windows.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Advantage

Product Details

Product Configuration

FAQ

Product Description

Fuyin TS2 Drift Window

Water Tightness Performance

Air Tightness Performance

Wind Pressure Resistance Performance

Soundproofing Performance

Thermal Insulation
Performance

Level 6

Level 8

Level 9

Level 4

Level 6

Drift windows combine the space-saving features of sliding windows with the airtightness of casement windows, opening and closing through the diagonal sliding movement of the sash. Their core features include multi-track linkage and tilting and sliding, addressing the issues of poor airtightness associated with traditional sliding windows and the space-consuming nature of casement windows.

Product Advantage

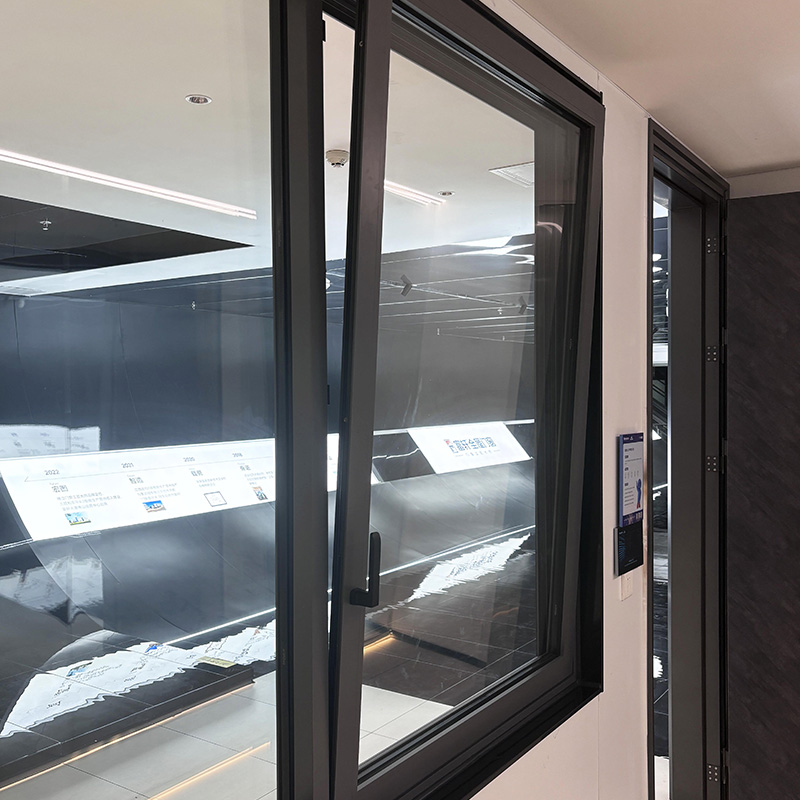

	The opening method can be sliding or tilting providing ventilation and breathability with no safety hazards

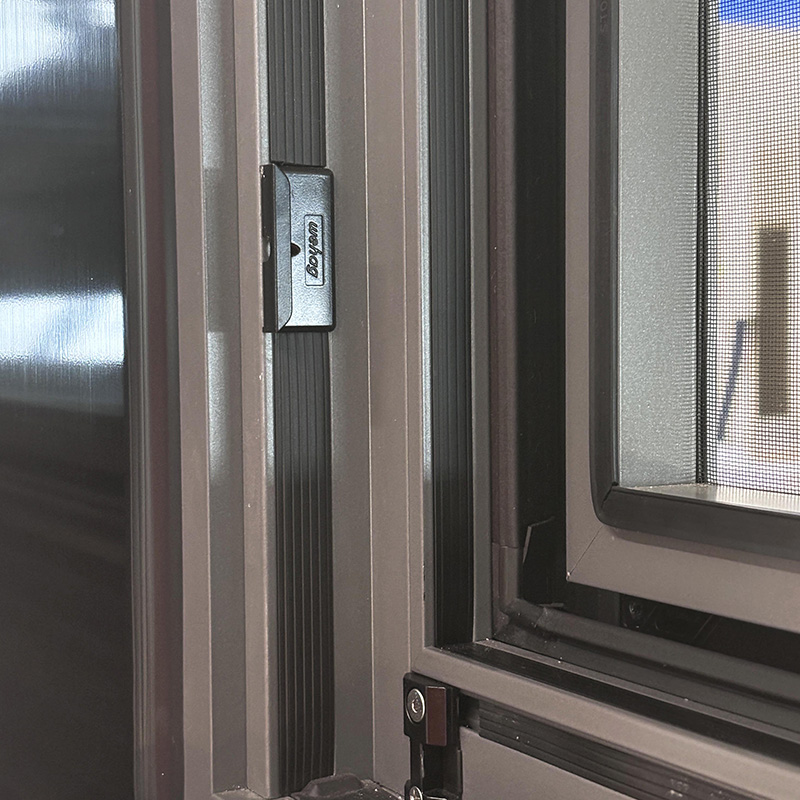

	Multiple locking points around the window sash enhance sealing and security
	Frame and sash are flush on both the inside and outside, sleek and beautiful, offering awide field of view
	The fixed screen net structure with snap-on installation making disassembly and cleaning more convenient

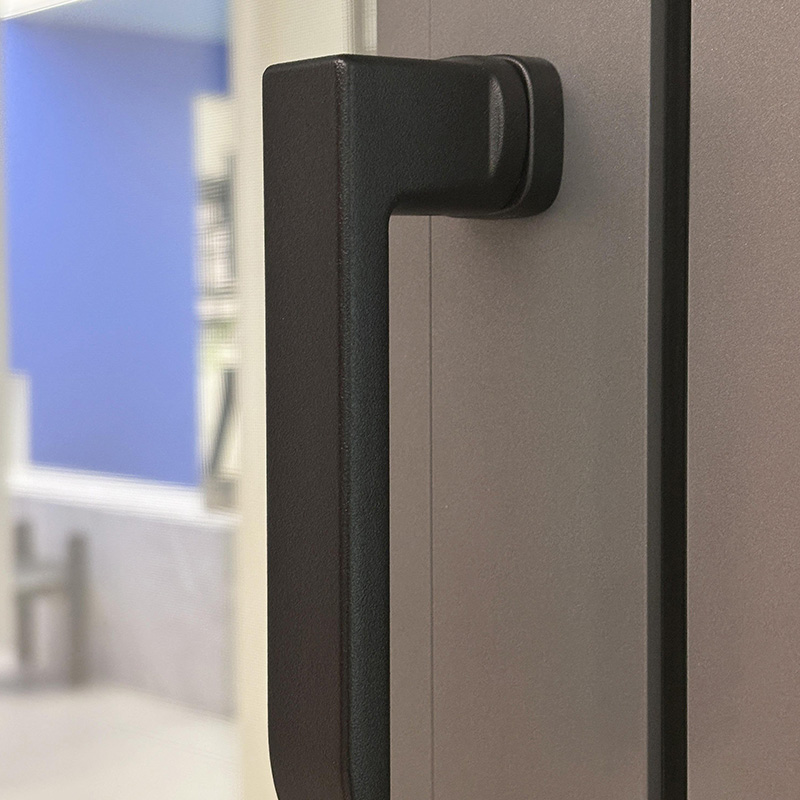

	Equipped with high-end customized hardware system, tested and reliable

Product Details

Product Configuration

Specifics

Frame Construction

Thermal break, tilt & turn sliding window with integrated screen, external drainage system，Fixed position with integrated glazing bead

Opening Methods

Sliding + tilt & turn

Visible Width

Frame 82mm (including glazing bead), Sash 73mm (including glazing bead)

Insulation Strips

Frame/Sash 24mm thermal barrier

Standard Glazing

Fixed window 5+27A+5, Opening sash 5+20A+5

Screen Mesh

Standard woven mesh, optional high-transparency mesh, stainless steel security mesh, HD mesh (fixed screen, non-operable)

Hardware

Standard Wehag

Wall Occupancy

102mm

FAQ

Q1: Are you a factory ?

A:Yes, our production base covers an area of 560,000 square meters, nearly 20 years of industry experience, and the top five well-known brands in China.

Q2: Are your products certified ?

A:Yes, it has complete international certification and test report, including Australian standard, European standard, American standard and so on.

Q3:Can doors and windows be customized ?

A:Yes, to meet the specific use of the environment of high custom and provide aluminum doors and windows matching the style of the building.

Q4: What's your MOQ?

A:We don't enforce strict MOQ requirements, allowing flexible order quantities. However, please note that smaller orders may incur proportionally higher shipping costs. For your reference, we always provide transparent cost breakdowns separating product value and shipping expenses.

Q5: Do you provide after-sales service ?

A:Quality and after-sales are guaranteed, any problem contact us.
