Fumei F5 Dual inner Sach Window

Double inward-opening windows usually refer to a design where both the window sash and screen can be opened indoors, taking into account safety, mosquito protection and easy cleaning.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Advantage

Product Details

Product Configuration

FAQ

Product Description

Fumei F5 Dual inner Sach Window

Water Tightness Performance

Air Tightness Performance

Wind Pressure Resistance Performance

Soundproofing Performance

Thermal Insulation
Performance

Level 6

Level 8

Level 9

≥32dB

K≤2.3

Double inward-opening windows usually refer to a design where both the window sash and screen can be opened indoors, taking into account safety, mosquito protection and easy cleaning.

Product Advantage

	Narrow design in window frame,expanding the field of vision
	Hidden vertical drainage, keeping the home completely dry
	Optional LOW-E+TPE-4SG insulated glass,bidding farewell to direct sunlight at home
	Exceeding national standard profile thickness, capable of withstanding wind pressure of up to 12 levels
	35.3mm extra-wide thermal insulation strip,keeping the home warm in winter and cool in summer

Product Details

Product Configuration

Specifics

Frame Construction

Full-flush Frame-Sash Alignment；Vertical multi-port concealed drainage system

Glazing Bead

Standard square glazing bead (no angled or curved beads)

Wall Thickness

Frame: 1.8–2.0mm

Sash: 1.8mm

Wall Width

85mm

Visible Surface

Frame & mullion: 33mm

Sash (incl. glazing bead): 64mm
Screen sash: 30mm

Standard Glazing

5+15A+5

Thermal Break

Frame: Domestic C-shape thermal break, 35.3mm
Sash: Domestic C-shape thermal break, 18mm

Screen Mesh Options

Standard: HD mesh

Optional: Stainless steel mesh (anti-theft), ultra-clear mesh

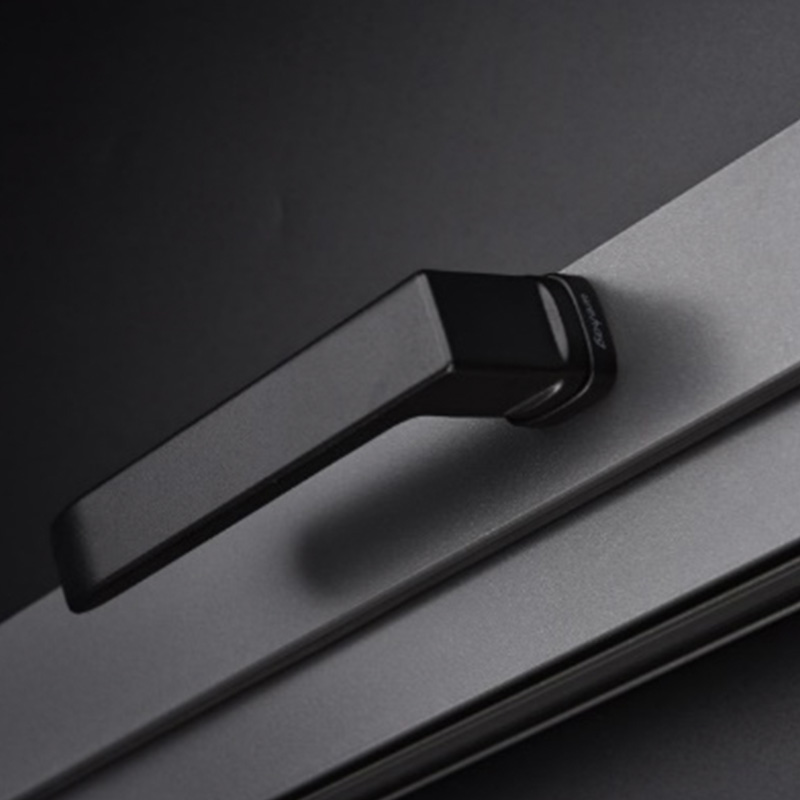

Hardware

Sash: VEHAGEN

FAQ

Q1: Are you a factory ?

A:Yes, our production base covers an area of 560,000 square meters, nearly 20 years of industry experience, and the top five well-known brands in China.

Q2: Are your products certified ?

A:Yes, it has complete international certification and test report, including Australian standard, European standard, American standard and so on.

Q3:Can doors and windows be customized ?

A:Yes, to meet the specific use of the environment of high custom and provide aluminum doors and windows matching the style of the building.

Q4: What's your MOQ?

A:We don't enforce strict MOQ requirements, allowing flexible order quantities. However, please note that smaller orders may incur proportionally higher shipping costs. For your reference, we always provide transparent cost breakdowns separating product value and shipping expenses.

Q5: Do you provide after-sales service ?

A:Quality and after-sales are guaranteed, any problem contact us.
