Water Tightness Performance |
Air Tightness Performance | Wind Pressure Resistance Performance |
Soundproofing Performance |
Thermal Insulation |
| Level 6 | Level 8 | Level 9 | ≥35dB | K≤2.3 |

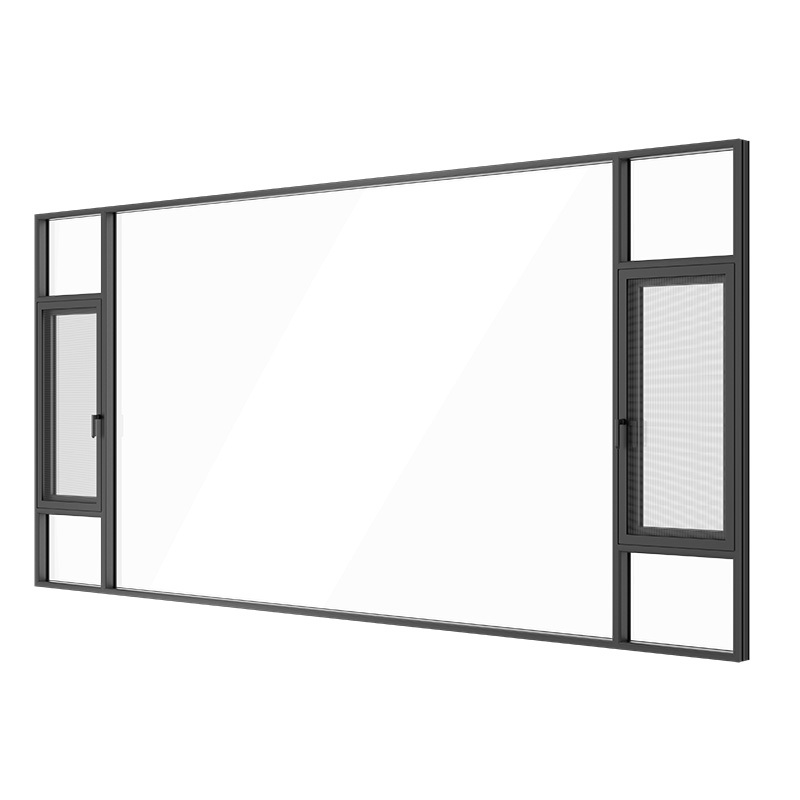

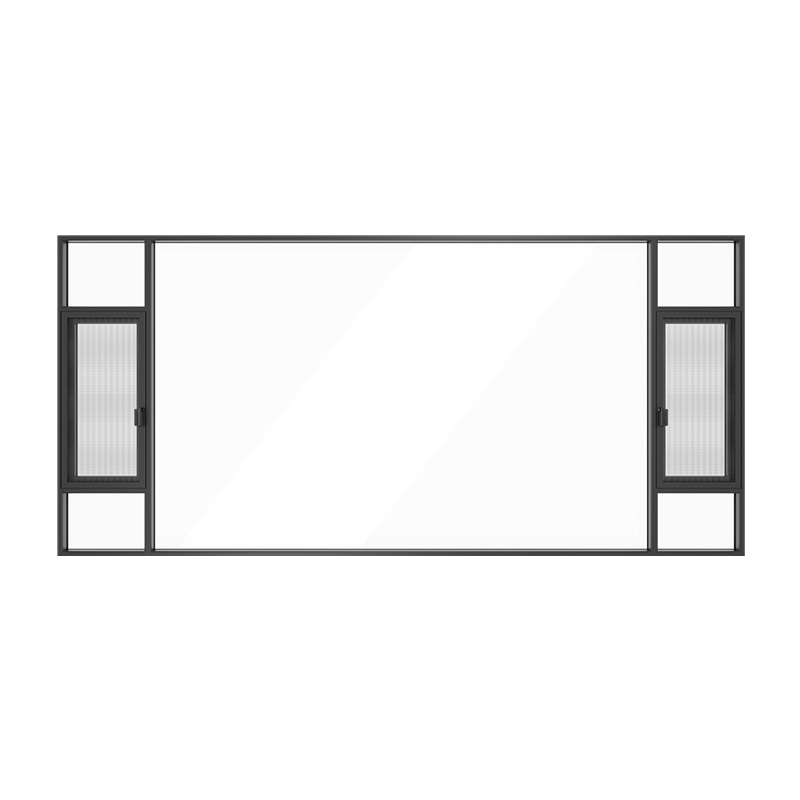

An outward-opening window with integrated screen design is a door and window system design that integrates an outward-opening window (a sash that opens outward) with a protective screen.
The core of this design is that the window frame and screen frame are a single, integral component, or the screen frame is a tightly integrated component fixed to the outside of the door and window structure (closely attached to the main frame).
| The fourth-generation hidden drainage system, worry-free in wind and rain |
| 28mm ultra-narro visible surface, presenting a wide field of vision |
| High-quality hardware system, safe and durable |
| Standard stainless steel high-definition sereen net, preventing mosquitoes and providing a clear view |
| 44mm ectra-wide thermal insulation strip Vertical isothermal line design |
Product Configuration | Specifics |
Frame Construction | Sealed Sliding Window |
Drainage System | One Fixed / One Sliding Sash |

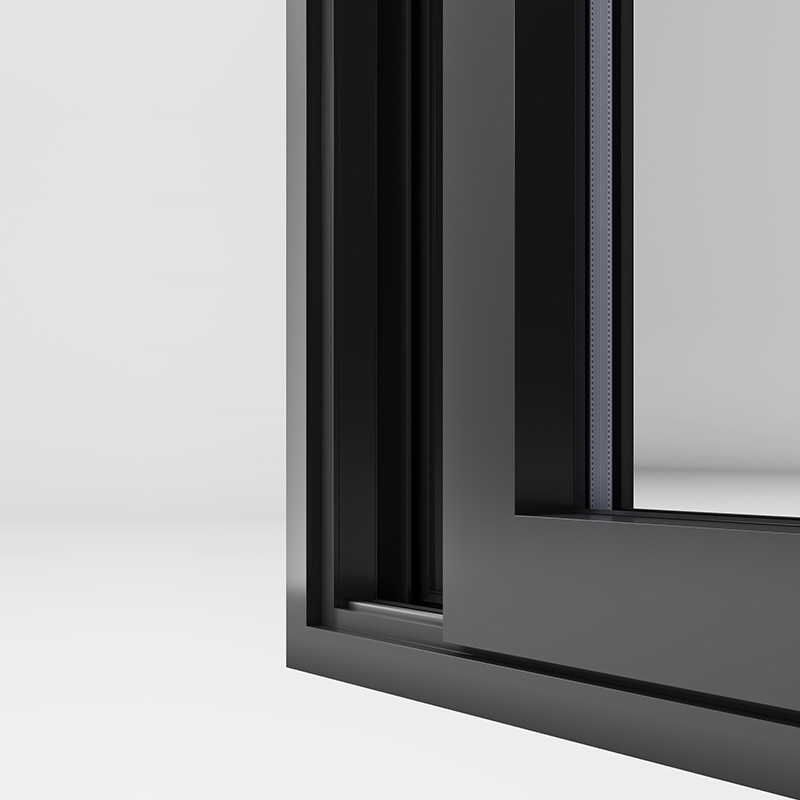

Visible Frame Widths | Main Frame: 27.3mm Mullion: 25.3mm |
Standard Glazing | Sliding Sash: 5+ 15A+ 5 |
Thermal insulation strip | Frame: C-Shape 22mm |
Hardware | Sterling (black) |
Options | Inward-opening screens can be installed, and glass guardrails can be installed on the outdoor side. |
Note | Maximum Sliding Sash Width: 1240mm. |
Q1: Are you a factory ?
A:Yes, our production base covers an area of 560,000 square meters, nearly 20 years of industry experience, and the top five well-known brands in China.
Q2: Are your products certified ?
A:Yes, it has complete international certification and test report, including Australian standard, European standard, American standard and so on.
Q3:Can doors and windows be customized ?
A:Yes, to meet the specific use of the environment of high custom and provide aluminum doors and windows matching the style of the building.
Q4: What's your MOQ?
A:We don't enforce strict MOQ requirements, allowing flexible order quantities. However, please note that smaller orders may incur proportionally higher shipping costs. For your reference, we always provide transparent cost breakdowns separating product value and shipping expenses.
Q5: Do you provide after-sales service ?
A:Quality and after-sales are guaranteed, any problem contact us.
