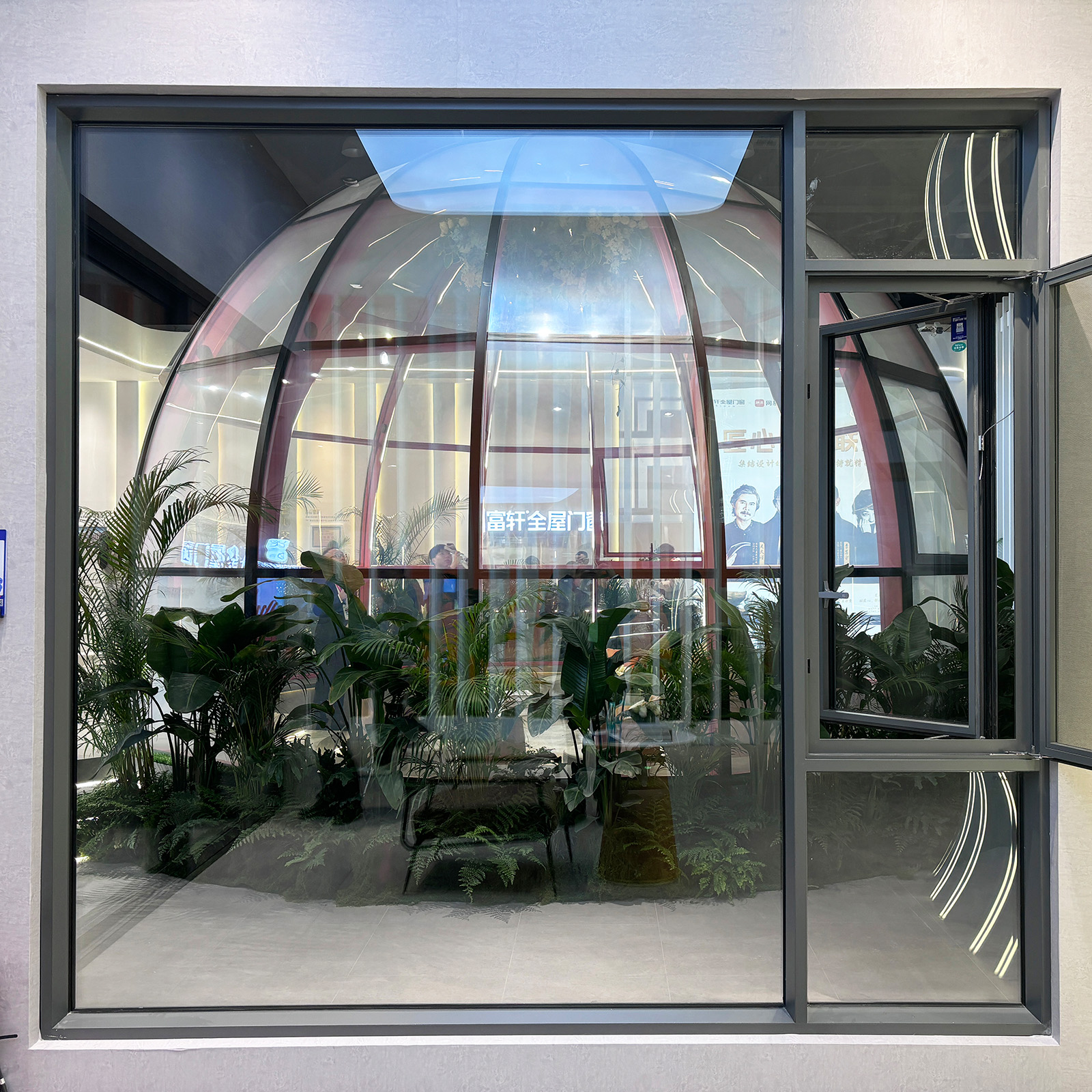

Fuyin S25 Medium Narrow Casement Window

"Outward-opening window with integrated screen" is a door and window system design that integrates outward-opening windows (window sashes that open outwards) with protective screens.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Advantage

Product Details

Product Configuration

FAQ

Product Description

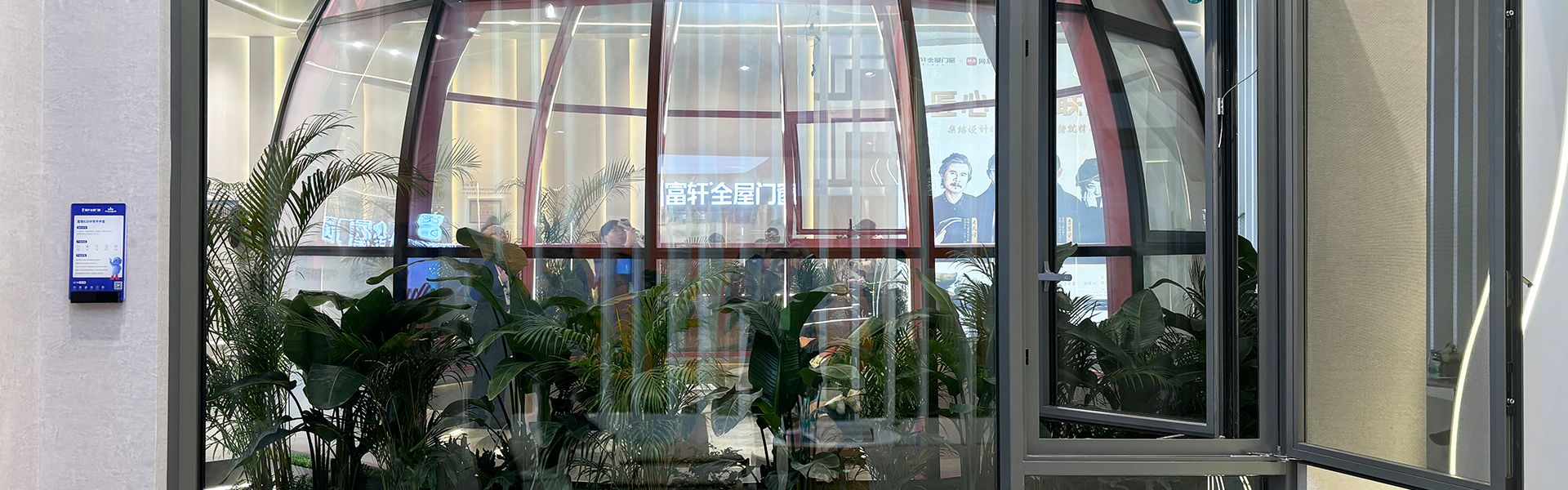

Fuyin S25 Medium Narrow Casement Window

Water Tightness Performance

Air Tightness Performance

Wind Pressure Resistance Performance

Soundproofing Performance

Thermal Insulation
Performance

Level 6

Level 8

Level 9

≥35dB

K≤2.5

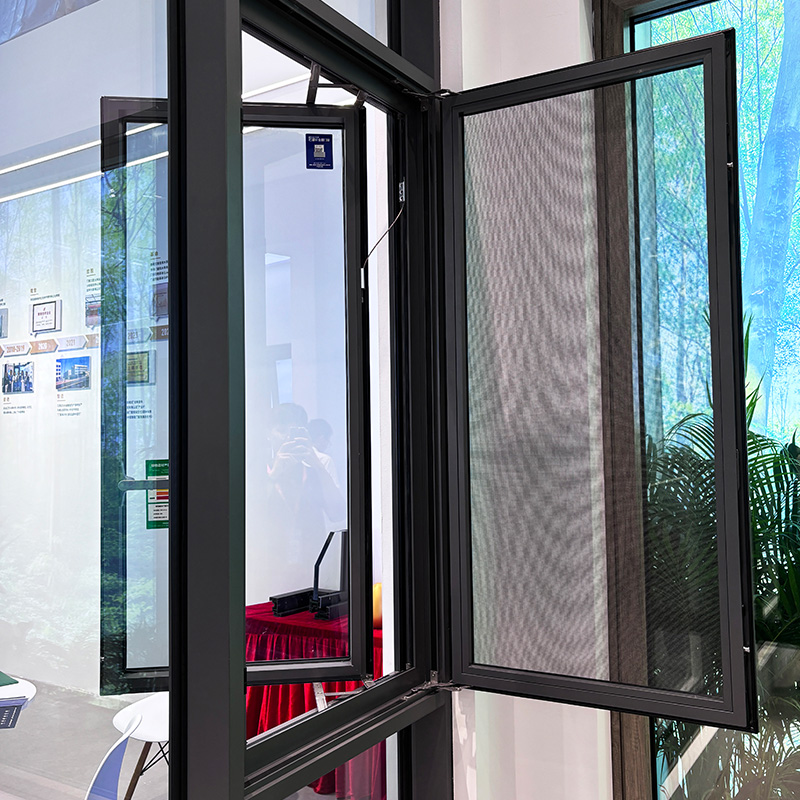

An outward-opening window with integrated screen design is a door and window system design that integrates an outward-opening window (a sash that opens outward) with a protective screen.
The core of this design is that the window frame and screen frame are a single, integral component, or the screen frame is a tightly integrated component fixed to the outside of the door and window structure (closely attached to the main frame).

Product Advantage

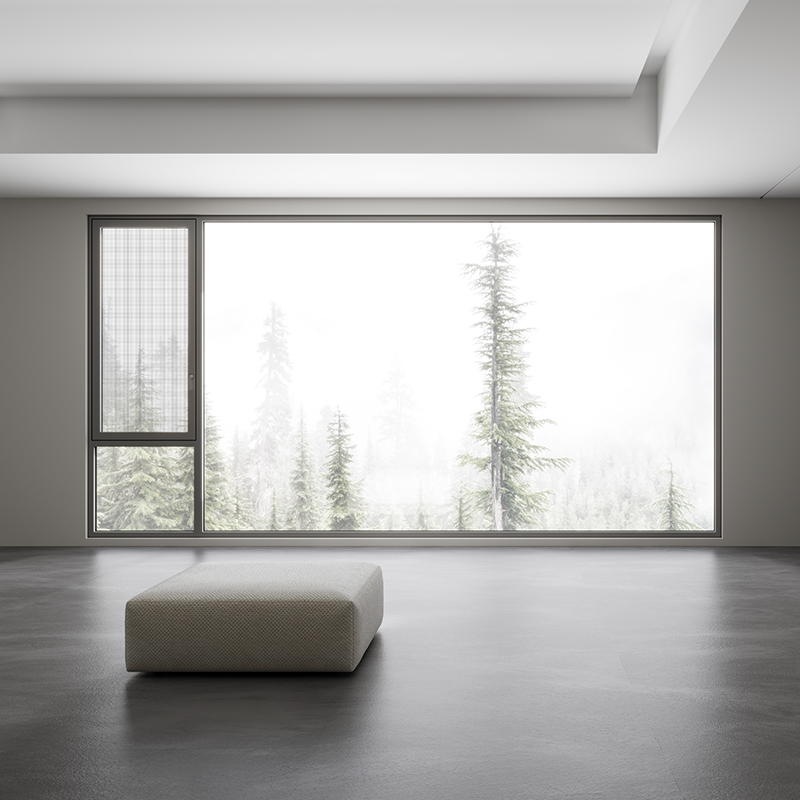

	Featuring a narow frame design, enjoy a panoramic view

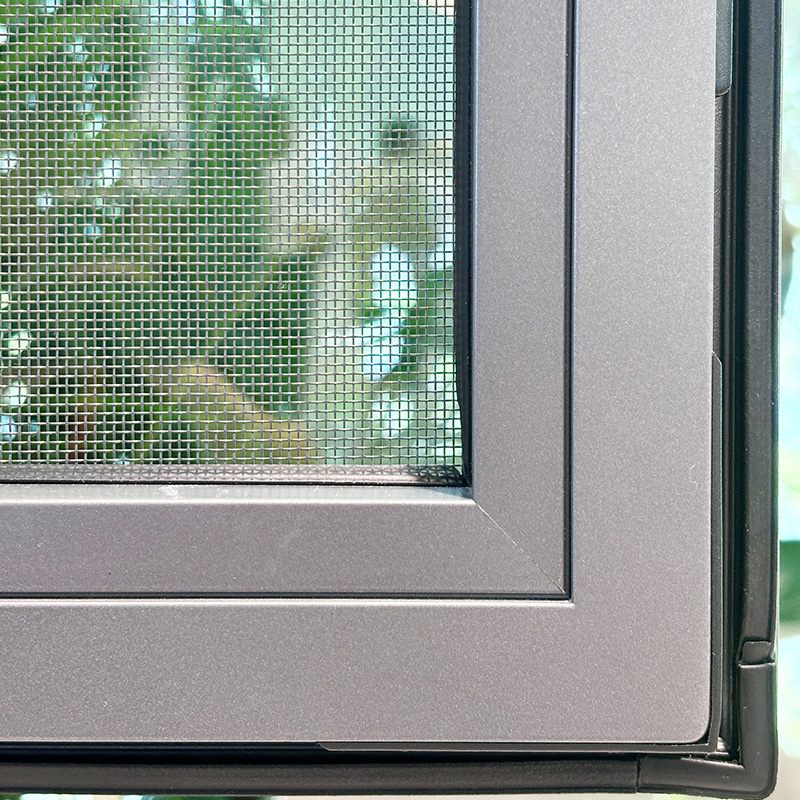

	Utilizing seamless welding technology to enhance aesthetics and ensure safety
	With an ultra-national standard profile thickness, it can withstand a wind pressure of 12 levels

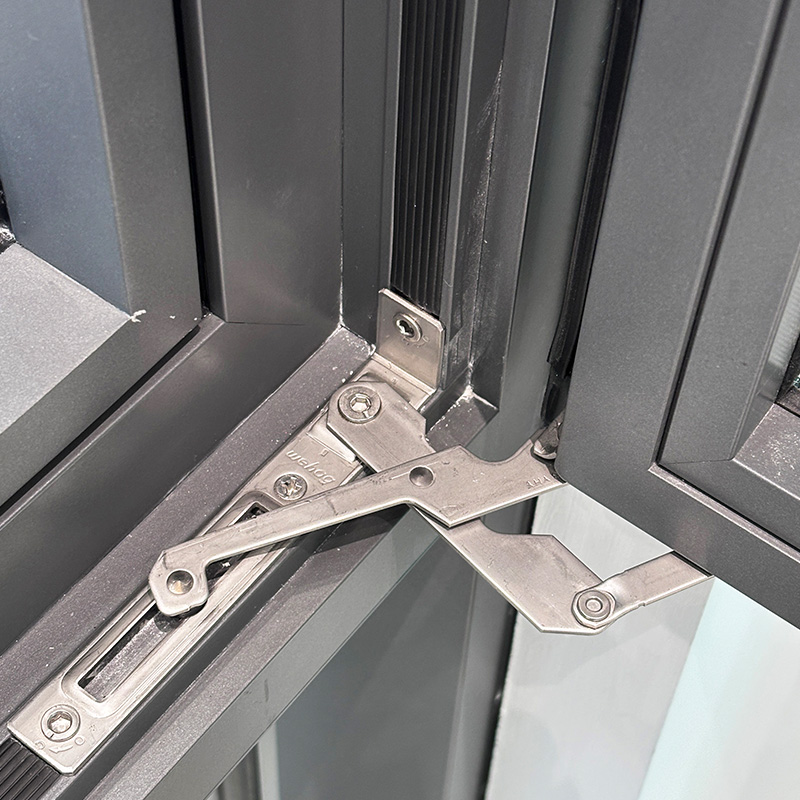

	High-end customized hardware system, balancing safety and taste
	The fourth-generation hidden verticaldrainage system, fearless in storm

Product Details

Product Configuration

Specifics

Wall Occupancy Width

125mm

Structure

Full-flush Frame-Sash Alignment；concealed drainage system

Glazing Bead

Round edge bead and angled bead

Insulation Bar

Frame: Domestic thermal bar 25.3mm - C-type.

Glazing Sash: Domestic thermal bar 25.3mm - C-type

Wall Thickness

Frame: 1.8-3.0mm
Glazing Sash: 1.8mm

Visible Face

Frame and Mullion: 32mm
Glazing Sash (including glazing bead): 32mm
Screen Sash: 57mm

Hardware

Custom high-end hardware

Standard Glazing

5+15A+5

Screen Mesh Configuration

Standard high-definition mesh, optional diamond mesh (anti-scratch) and high-transparency mesh

FAQ

Q1: Are you a factory ?

A:Yes, our production base covers an area of 560,000 square meters, nearly 20 years of industry experience, and the top five well-known brands in China.

Q2: Are your products certified ?

A:Yes, it has complete international certification and test report, including Australian standard, European standard, American standard and so on.

Q3:Can doors and windows be customized ?

A:Yes, to meet the specific use of the environment of high custom and provide aluminum doors and windows matching the style of the building.

Q4: What's your MOQ?

A:We don't enforce strict MOQ requirements, allowing flexible order quantities. However, please note that smaller orders may incur proportionally higher shipping costs. For your reference, we always provide transparent cost breakdowns separating product value and shipping expenses.

Q5: Do you provide after-sales service ?

A:Quality and after-sales are guaranteed, any problem contact us.
