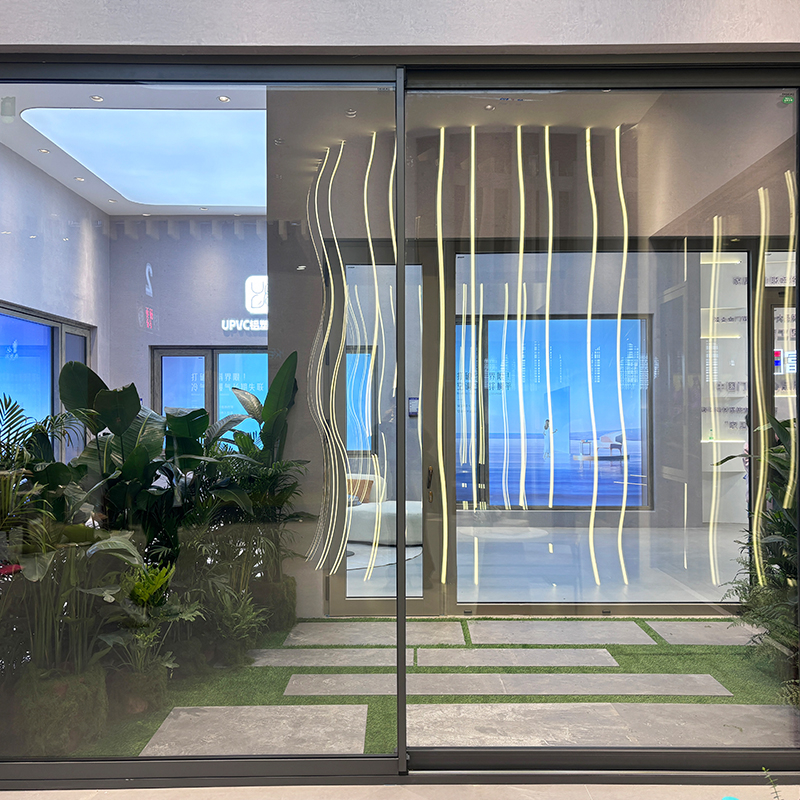

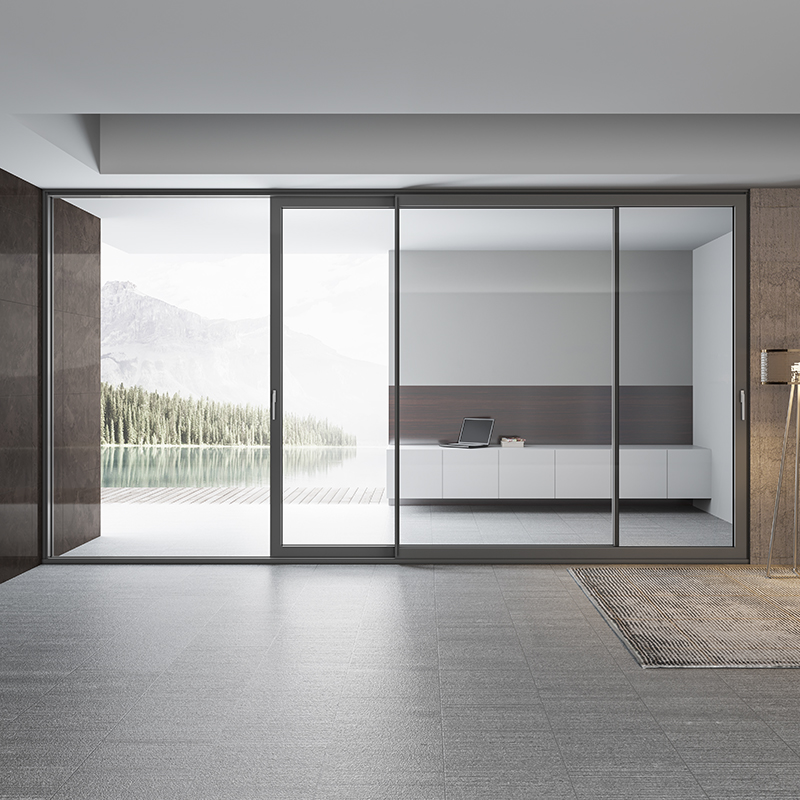

Fuya MT32 Thermal Break Sliding Door

A sliding door is a door that opens by sliding horizontally. Sliding doors can be mounted on top of a lower track or hung from an upper track.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Advantage

Product Details

Product Configuration

FAQ

Product Description

Water Tightness Performance

Air Tightness Performance

Wind Pressure Resistance Performance

Soundproofing Performance

Thermal Insulation
Performance

Level 4

Level 5

Level 9

≥32dB

K≤2.9

A sliding door is a door that opens by sliding horizontally. Sliding doors can be mounted on top of a lower track or hung from an upper track.

Product Advantage

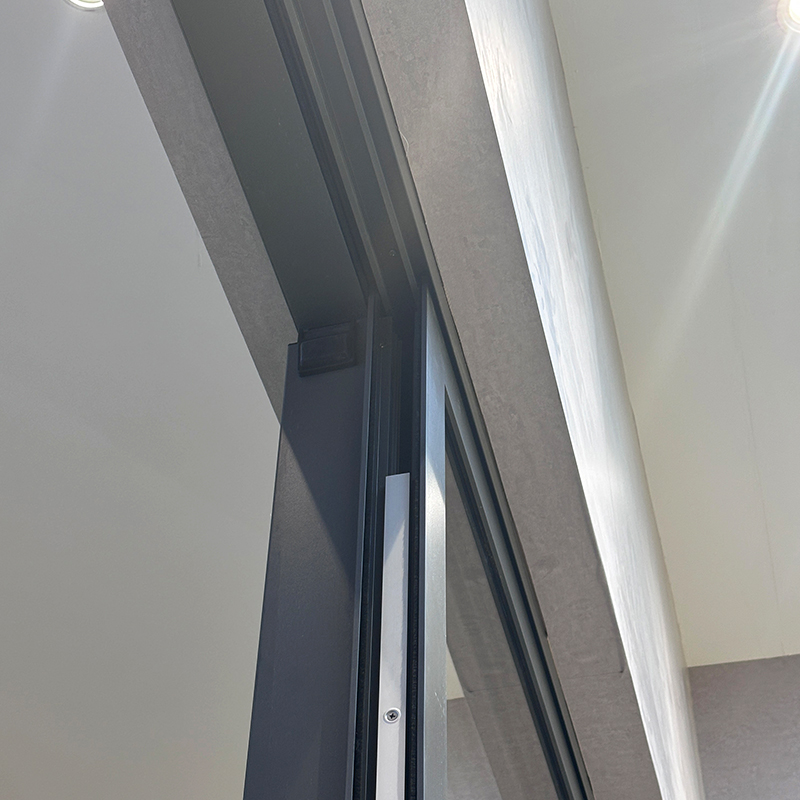

	Slim narrow-frame design, minimalist and versatile.
	Optional lifting hardware with 400kg high load capacity.
	Built-in 18.6mm thermal break strip for improved thermal insulation.

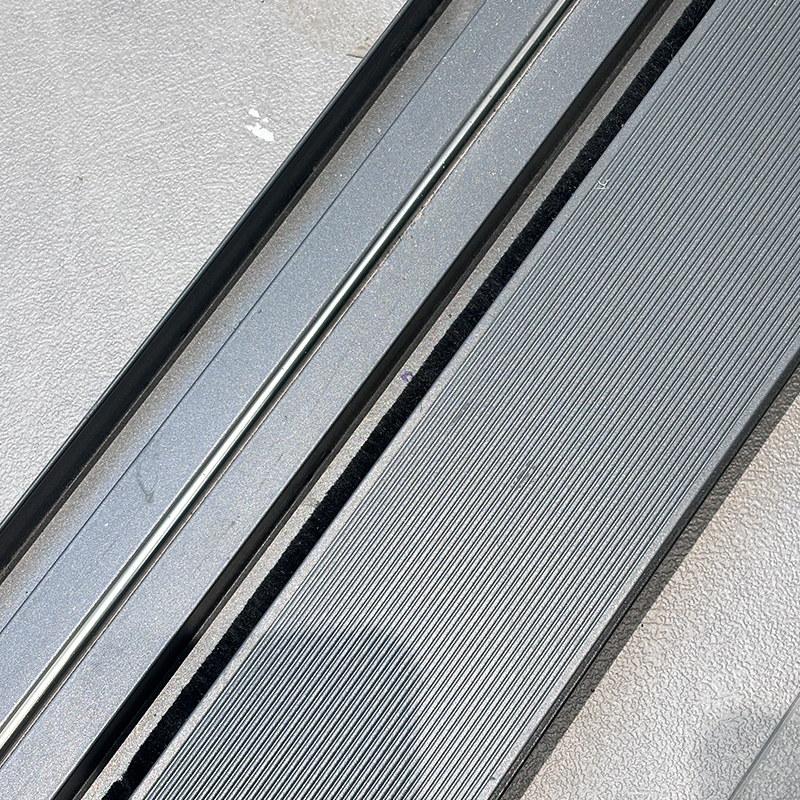

	Dual or triple track options available, adaptable to various scenarios.
	Standard high-definition insect screen, prevents mosquitoes and insects.

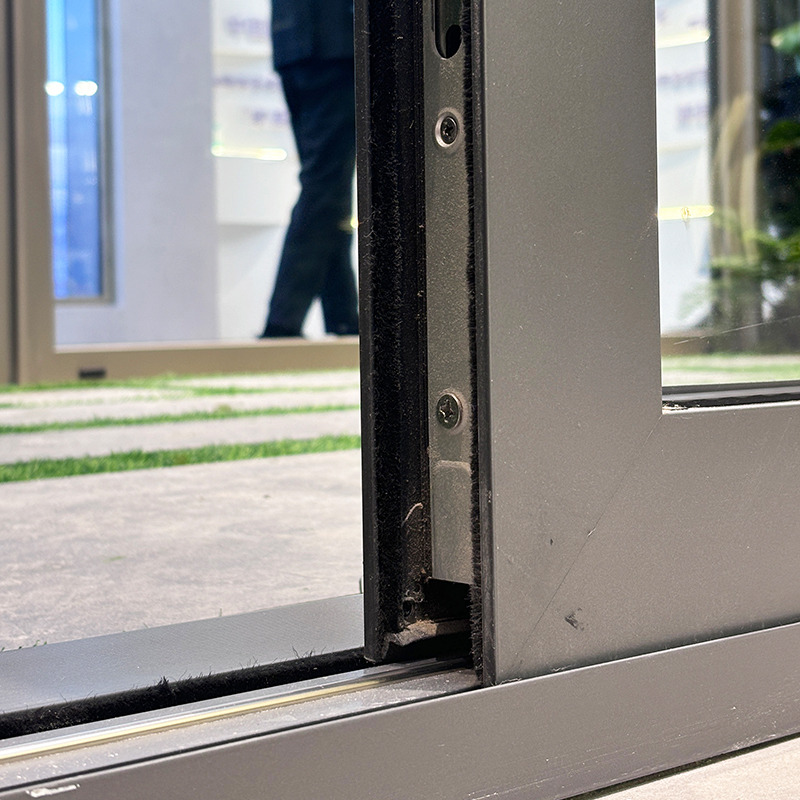

Product Details

Product Configuration

Product Configuration	Specifics
Structure	Thermal break, frame-over-sash design
Opening Methods	2-track 2-panel, 2-track 4-panel, 3-track 2-panel with screen, 3-track 4-panel with screen
Face Width	Frame 44mm, Glazing Bead 32mm
Standard Glass	5+18A+5
Thermal Barrier	Frame C18.6mm thermal break, Sash 18.6mm thermal break
Glass	5+15A+5

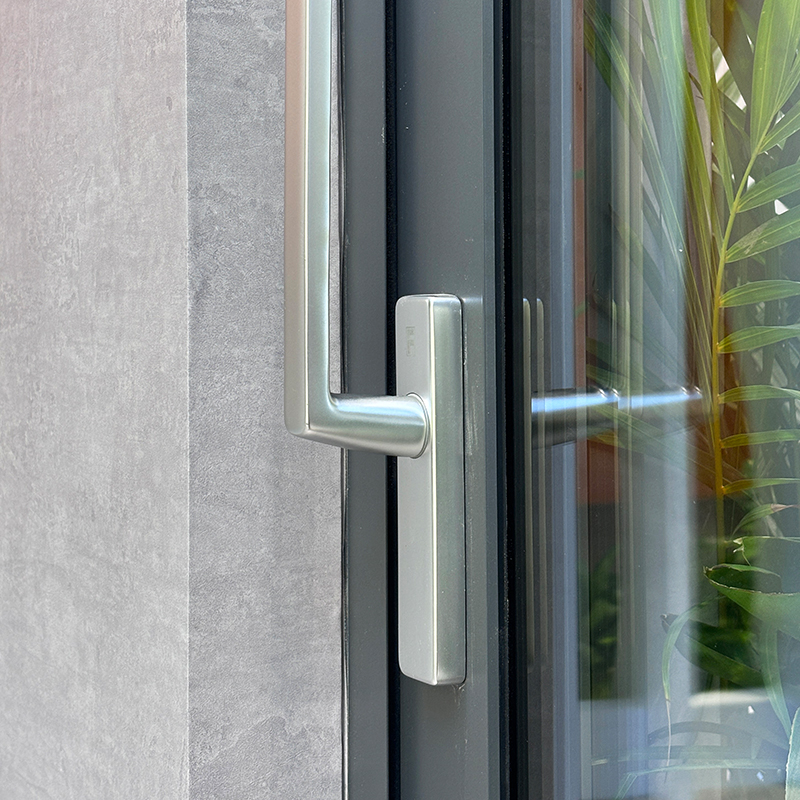

Hardware	Standard Fuxuan custom hardware, Optional Hanwei lift hardware
Screen	Standard HD screen, Optional high-transparency screen, diamond mesh, woven mesh
Wall Occupancy	2-track 148.6mm, 3-track 192.3mm
Wall Thickness	Frame 1.5-2.2mm, Glazing Sash 1.7-2.2mm, Screen Sash 1.4mm

FAQ

Q1: Are you a factory ?

A:Yes, our production base covers an area of 560,000 square meters, nearly 20 years of industry experience, and the top five well-known brands in China.

Q2: Are your products certified ?

A:Yes, it has complete international certification and test report, including Australian standard, European standard, American standard and so on.

Q3:Can doors and windows be customized ?

A:Yes, to meet the specific use of the environment of high custom and provide aluminum doors and windows matching the style of the building.

Q4: What's your MOQ?

A:We don't enforce strict MOQ requirements, allowing flexible order quantities. However, please note that smaller orders may incur proportionally higher shipping costs. For your reference, we always provide transparent cost breakdowns separating product value and shipping expenses.

Q5: Do you provide after-sales service ?

A:Quality and after-sales are guaranteed, any problem contact us.
