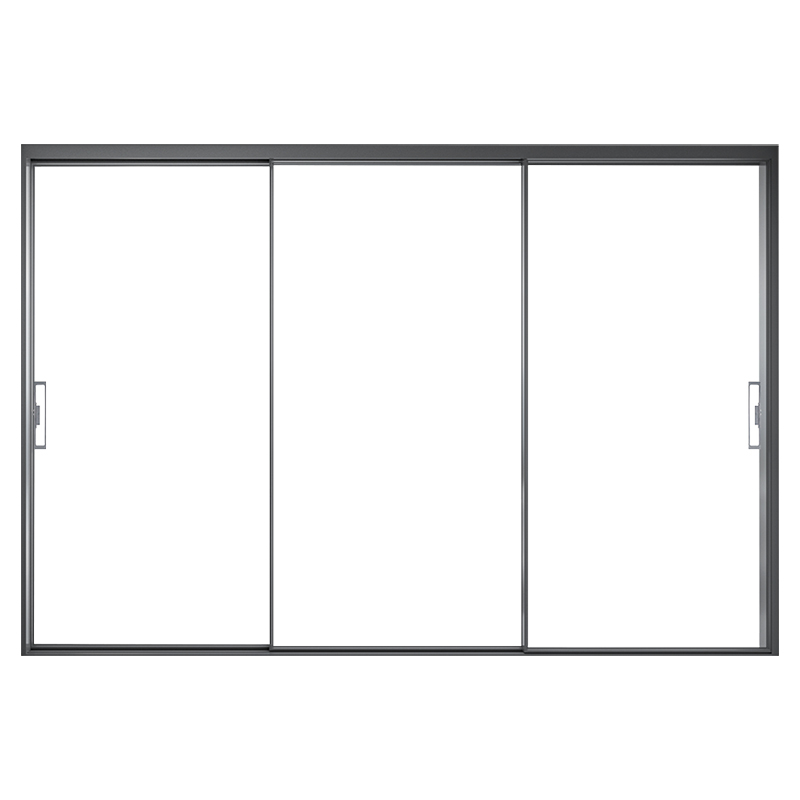

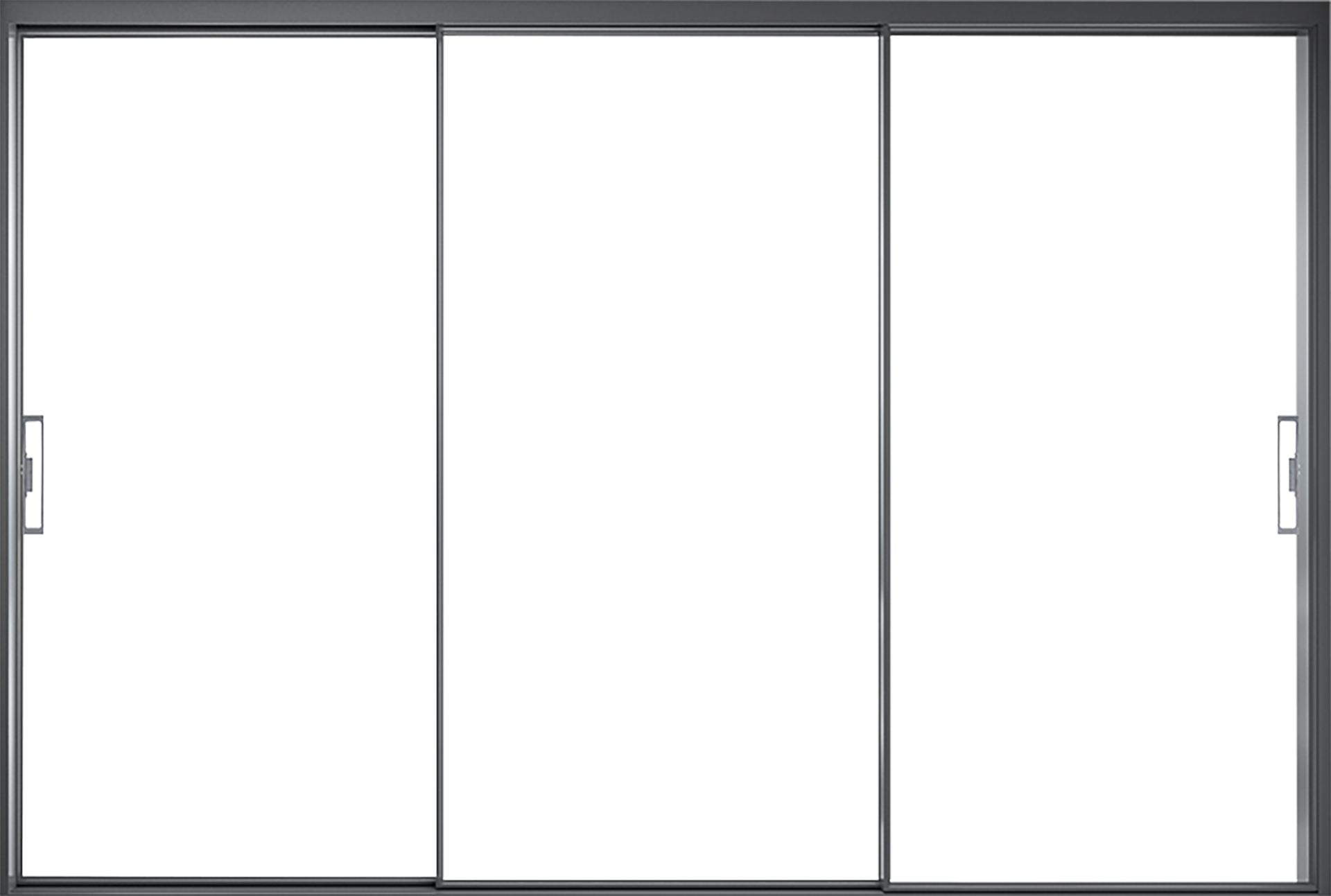

Minimalist Style S Series Sliding Doors

A sliding door is a door that opens by sliding horizontally. Sliding doors can be mounted on top of a lower track or hung from an upper track.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Advantage

Product Details

Product Configuration

FAQ

Product Description

a287a1d185534318377f026ef910026

Water Tightness Performance

Air Tightness Performance

Wind Pressure Resistance Performance

Soundproofing Performance

Level 3

Level 4

≥35dB

A sliding door is a door that opens by sliding horizontally. Sliding doors can be mounted on top of a lower track or hung from an upper track.

Product Advantage

	Ultra-narrow frame design,panoramic view

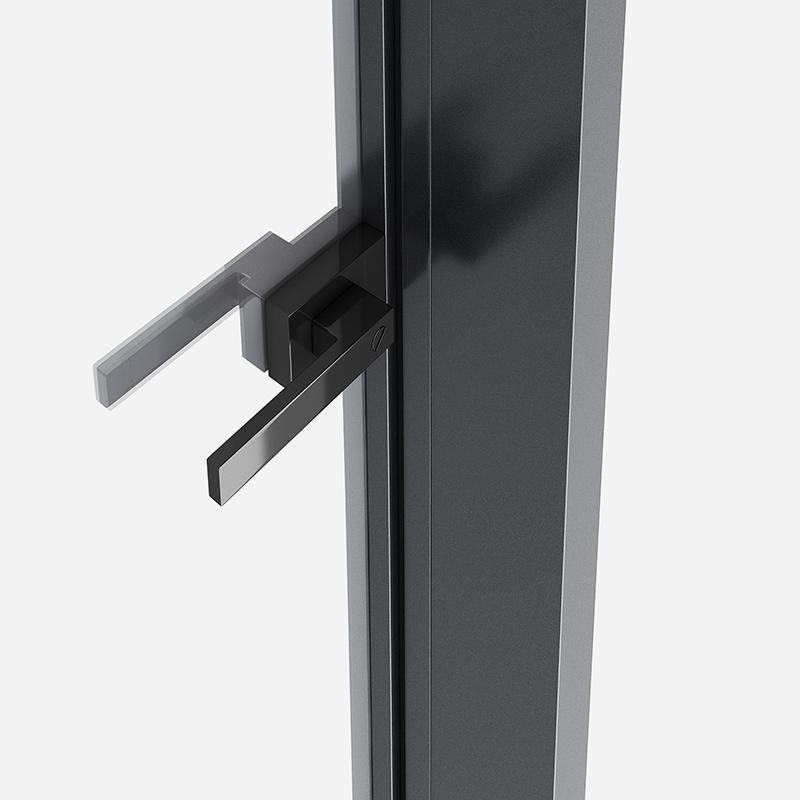

	High-quality silent magnetic lock,quiet and comfortable

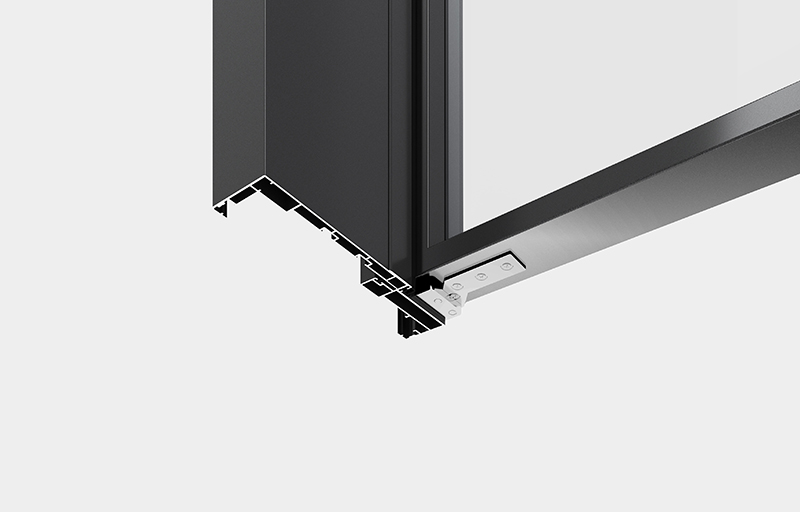

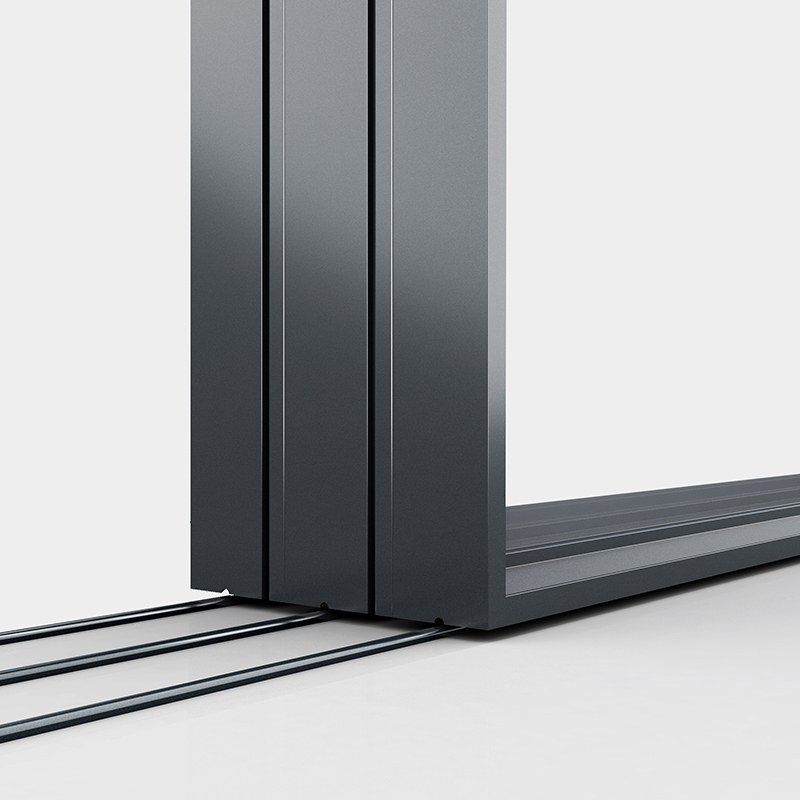

	Doorsash with hidden roller design,simple and elegant

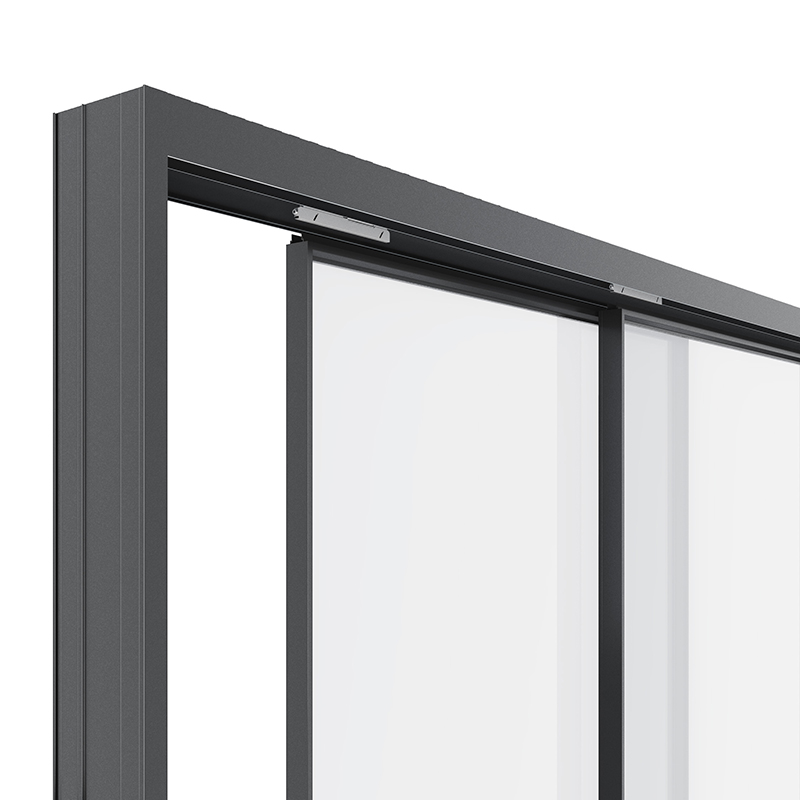

	Buffered rail design,safe and silent

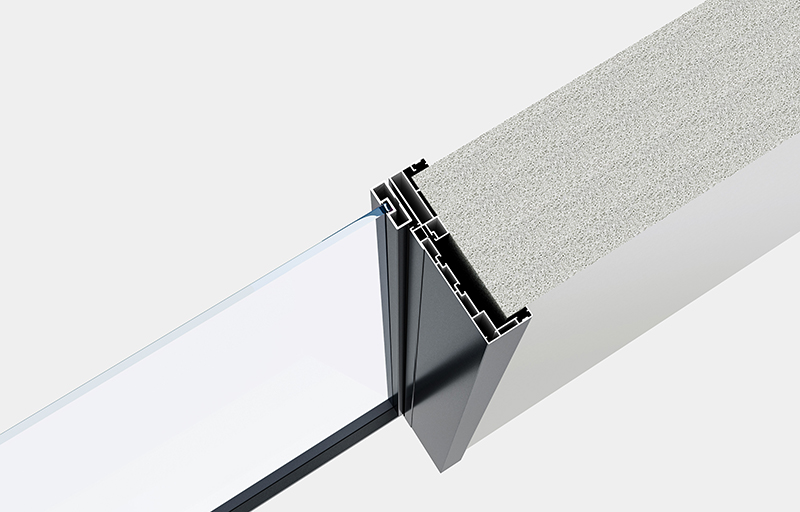

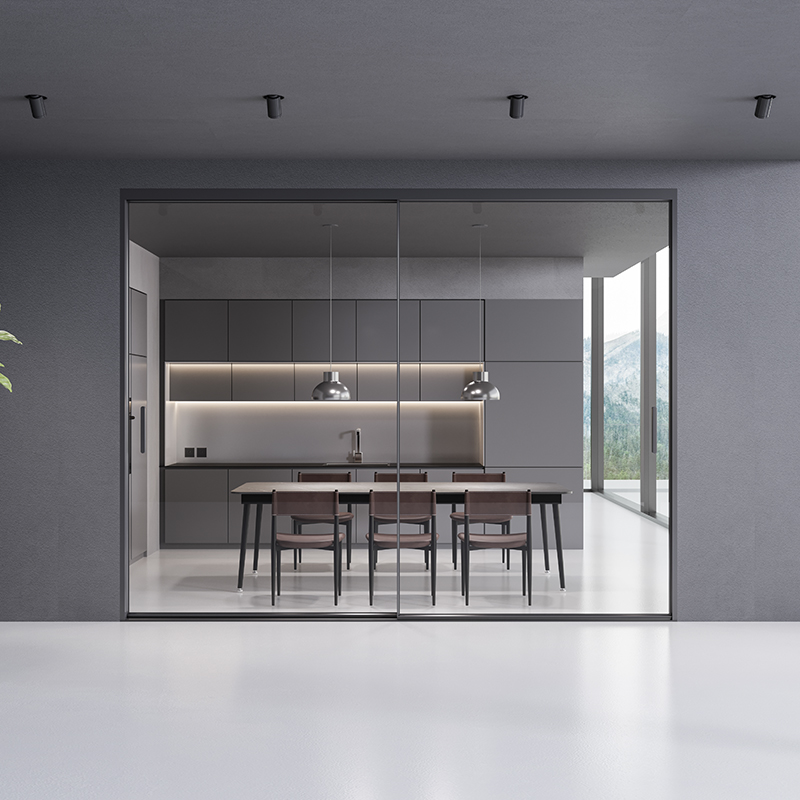

	Embedded frame,abundant natural light

Product Details

Product Configuration

Product Configuration	Specifics
Profile Wall Thickness	Frame: 1.2 mm Sash: 2.0 mm
Track	Low Track (Bottom Rail/Sill) Brass Track

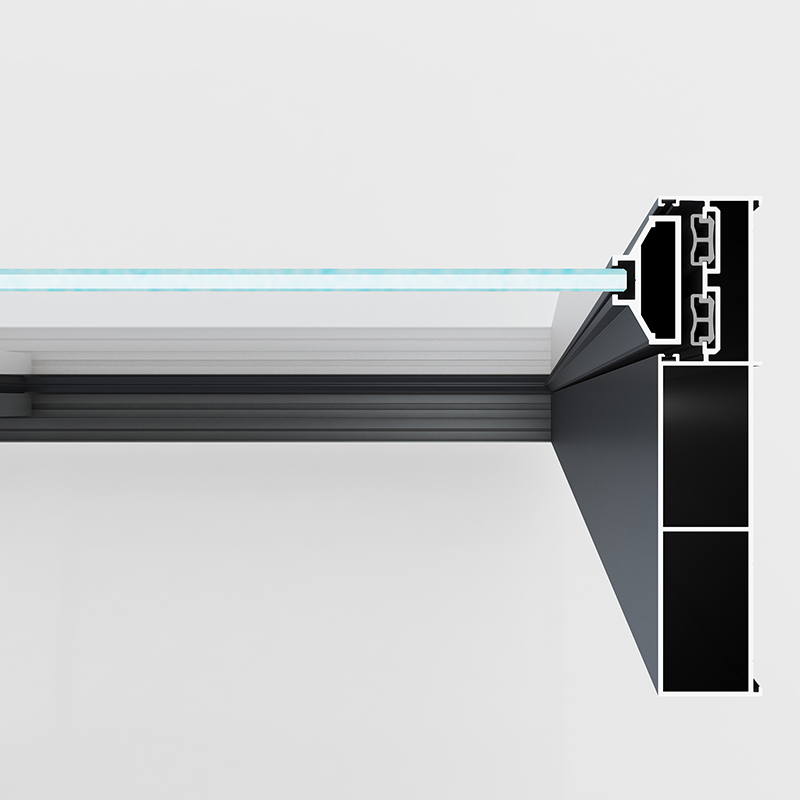

Profile Visible Surface Width	Upper Track (Head): 55 mm Frame/Jamb: 20 mm Lower Track (Sill): 10 mm Sash: 16 mm
Frame Wall Depth	105 mm
Operation Styles	2-Track, 2-Sash 2-Track, 4-Sash 2-Track, 4-Sash, Opposite Opening with Center Coupling (Center two sashes are coupled/connected)
Glazing	Standard: 8 mm Monolithic Glass (Option for 4+4 mm Wired Glass) Optional: 4 mm + 8A Argon (or Air) Gap + 4 mm Insulated Glass Unit (IGU/Double Glazing)
Hardware	Standard: Square "H" or "O" Type Handle with Locking Mechanism Standard: OPAK Rollers / Anti-Sway Rollers (Stabilizer Wheels)

FAQ

Q1: Are you a factory ?

A:Yes, our production base covers an area of 560,000 square meters, nearly 20 years of industry experience, and the top five well-known brands in China.

Q2: Are your products certified ?

A:Yes, it has complete international certification and test report, including Australian standard, European standard, American standard and so on.

Q3:Can doors and windows be customized ?

A:Yes, to meet the specific use of the environment of high custom and provide aluminum doors and windows matching the style of the building.

Q4: What's your MOQ?

A:We don't enforce strict MOQ requirements, allowing flexible order quantities. However, please note that smaller orders may incur proportionally higher shipping costs. For your reference, we always provide transparent cost breakdowns separating product value and shipping expenses.

Q5: Do you provide after-sales service ?

A:Quality and after-sales are guaranteed, any problem contact us.
