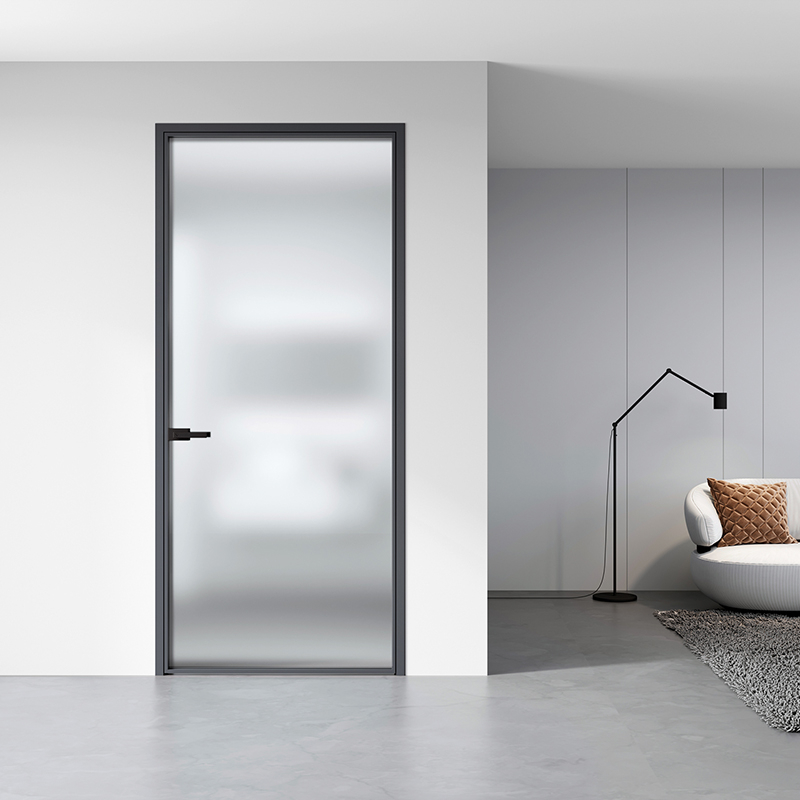

Minimalist Style Series Swing Door

A swing door is a door that has hinges installed on the side of the door and can be opened inward or outward.

Quantity:
Availability:





Inquire Add to Basket

Swing door with ultra-slim frame Modern swing door with thermal break Swing door with crystal laminated glass Swing door with top-and-bottom pivot Inward/outward opening swing door Minimalist swing door with dual-lock Slim profile swing door Swing door with weather resistance Swing door with soundproof performance

Product Description

Product Advantage

Product Details

Product Configuration

FAQ

Product Description

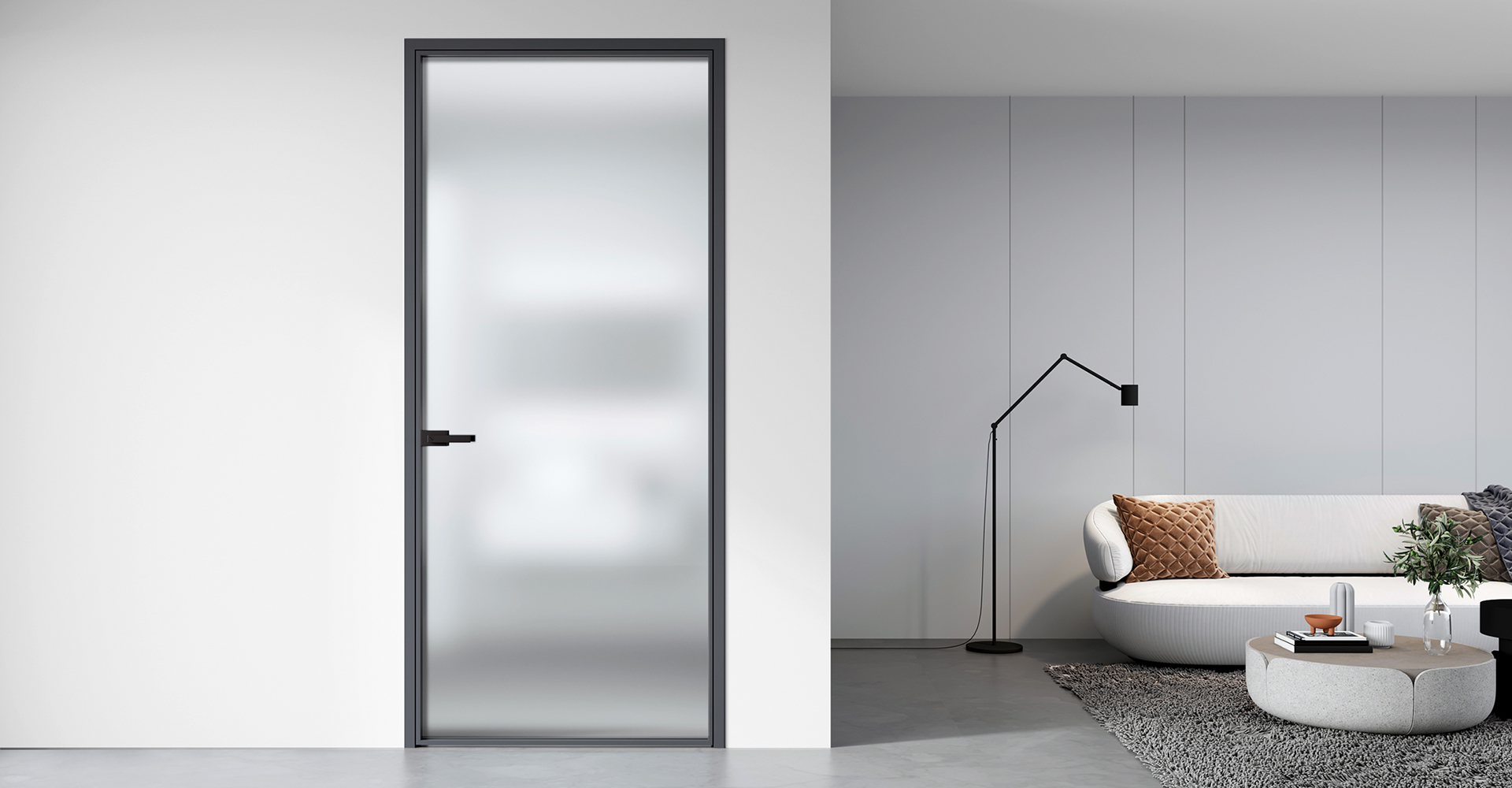

二代极致艺术平开门

Water Tightness Performance

Air Tightness Performance

Wind Pressure Resistance Performance

Soundproofing Performance

Level 2

Level 4

Level 5

≥35dB

K≤2.8

A sliding door is a door that opens by sliding horizontally. Sliding doors can be mounted on top of a lower track or hung from an upper track.

Product Advantage

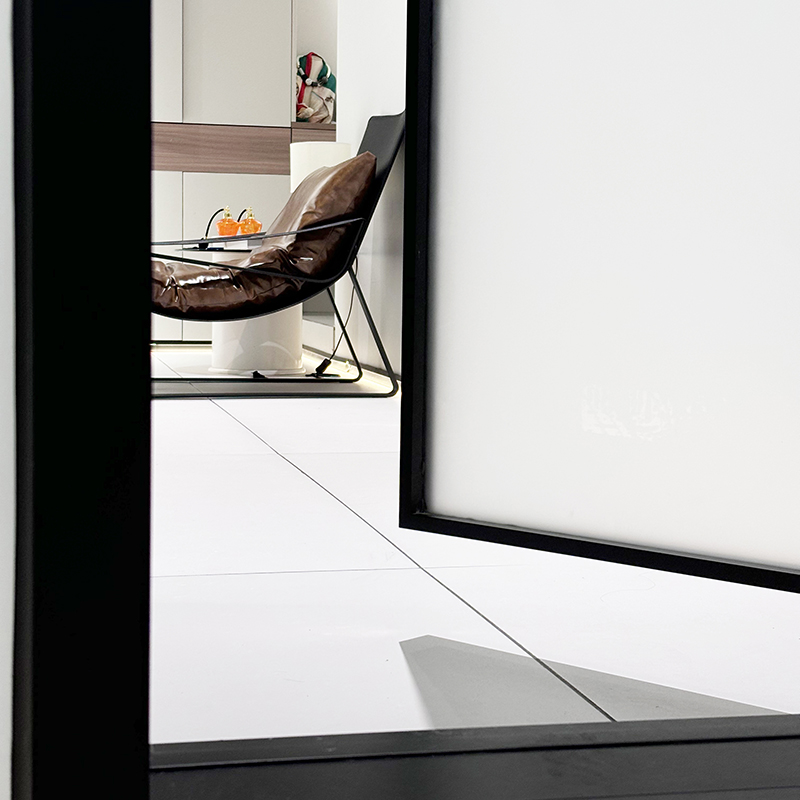

	Minimalist frame design,panoramic view

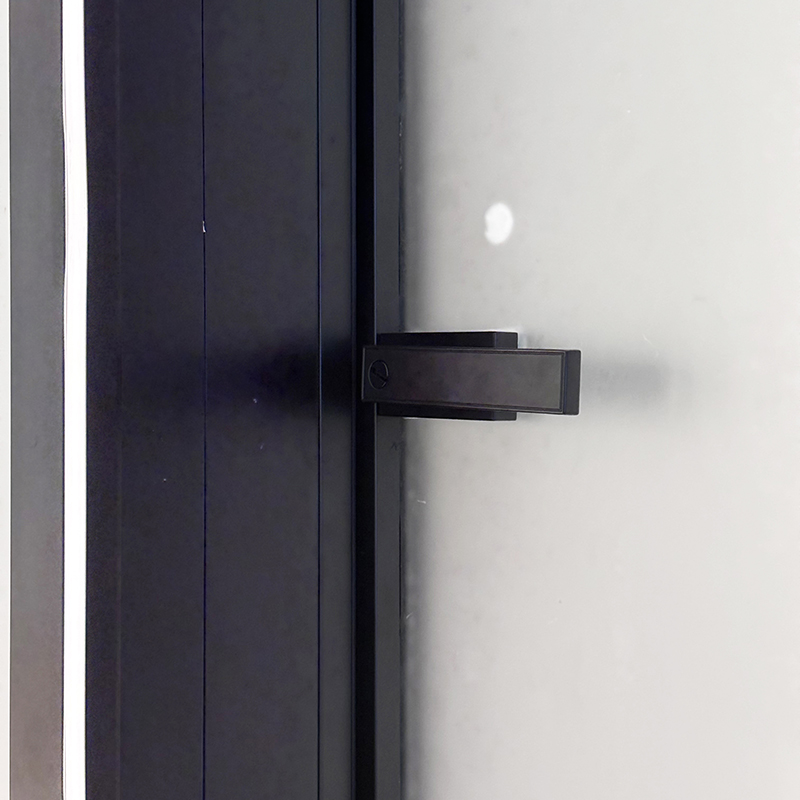

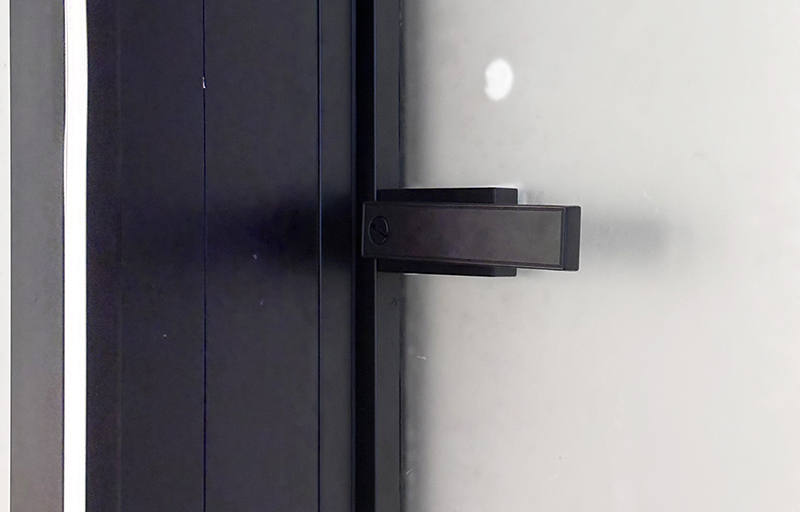

	High-quality silent magnetic lock,silent and comfortable
	Integrated package design,simple and atmospheric
	Crystal laminated glass,excellent privacy effect

Product Details

Product Configuration

Product Configuration	Specifics

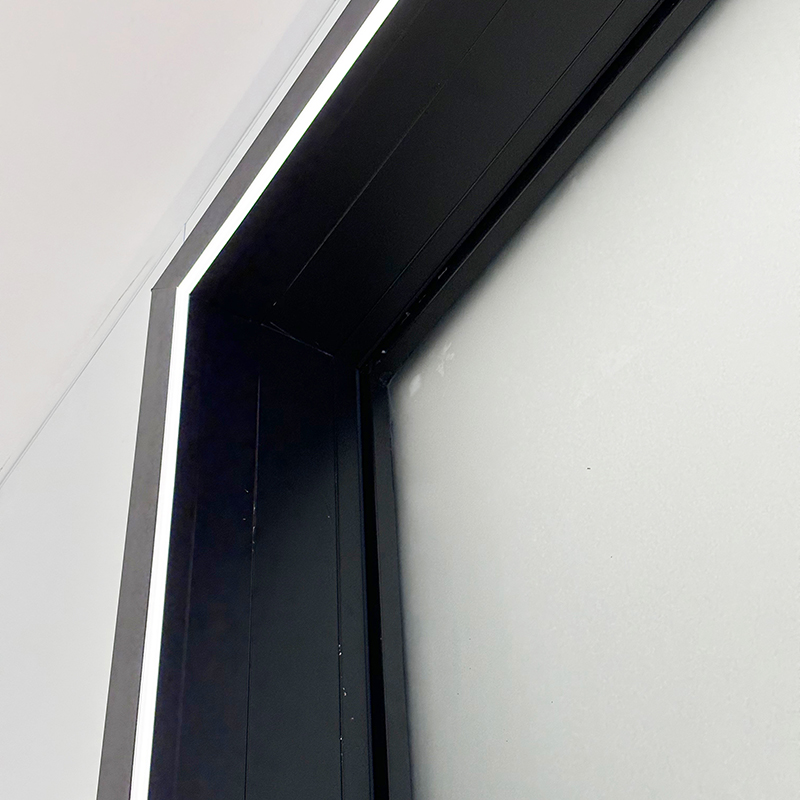

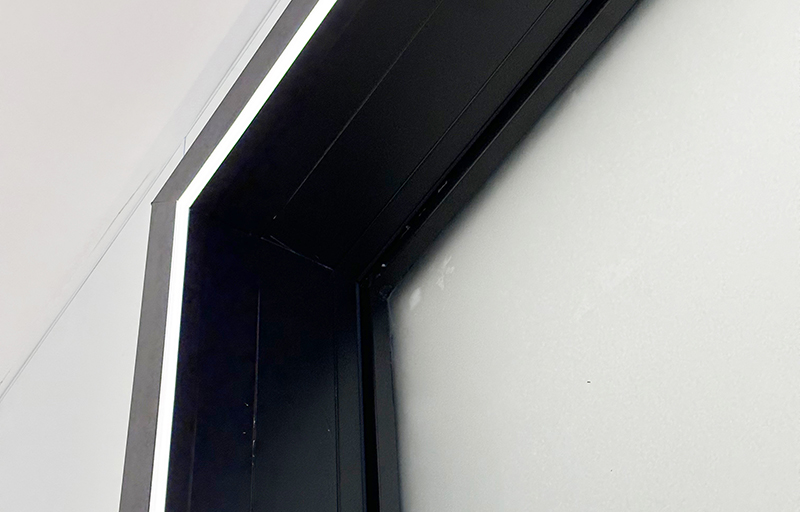

Structure	Ultra-slim frame/door leaf, dual frame design with integrated wrapping.
Profile Wall Thickness	Frame 1.4mm, Door Leaf 2.0mm.
Opening Methods	Out-swing inward open, out-swing outward open, dual frame (inward/outward open), double door, double door with sidelight.
Wall Occupancy	Out-swing inward open 56mm, out-swing outward open 62mm, dual frame minimum wall thickness 80mm.
Face Width	Frame edge surface 47mm, Leaf 16mm.
Glass Configuration	Standard 8mm single glazing, Optional 4mm+8A+4mm.

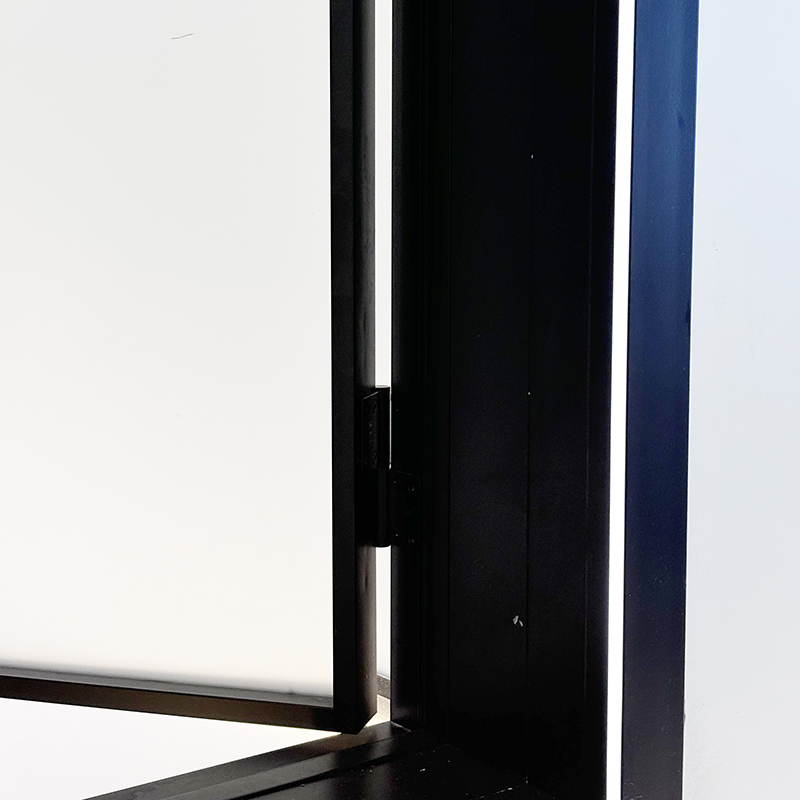

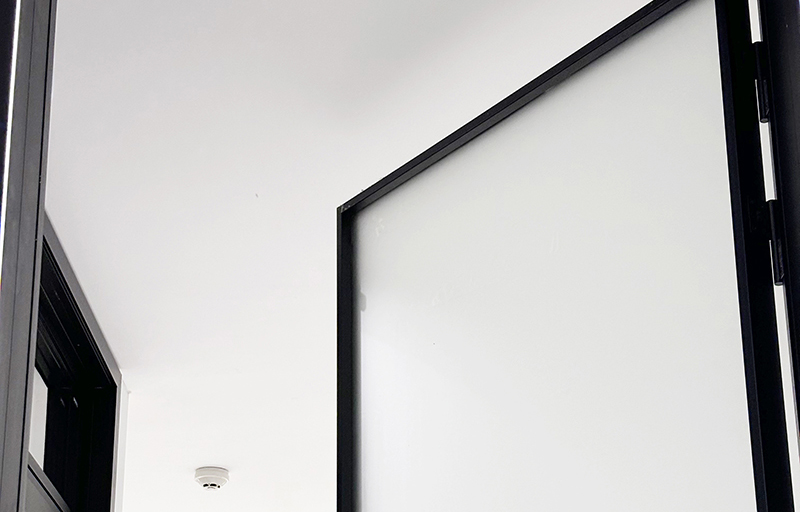

Hardware	Standard Fuxuan minimalist lock (with magnetic absorption), standard top-and-bottom pivot; Optional Baogaoming pivot.

FAQ

Q1: Are you a factory ?

A:Yes, our production base covers an area of 560,000 square meters, nearly 20 years of industry experience, and the top five well-known brands in China.

Q2: Are your products certified ?

A:Yes, it has complete international certification and test report, including Australian standard, European standard, American standard and so on.

Q3:Can doors and windows be customized ?

A:Yes, to meet the specific use of the environment of high custom and provide aluminum doors and windows matching the style of the building.

Q4: What's your MOQ?

A:We don't enforce strict MOQ requirements, allowing flexible order quantities. However, please note that smaller orders may incur proportionally higher shipping costs. For your reference, we always provide transparent cost breakdowns separating product value and shipping expenses.

Q5: Do you provide after-sales service ?

A:Quality and after-sales are guaranteed, any problem contact us.
